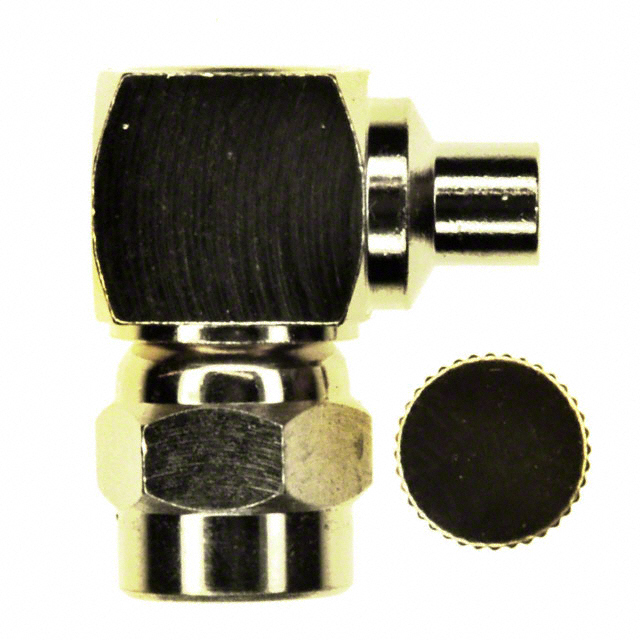

SMC RIGHT ANGLE SOLDER PLUG RG-405 0.086-INCH CONFORMABLE 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

152138

Active

Amphenol RF

SMC RIGHT ANGLE SOLDER PLUG RG-405 0.086-INCH CONFORMABLE 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	152138

Body Finish	Gold
Body Material	Brass
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

1521 Series

Part	Contact Termination	Impedance	Center Contact Material	Dielectric Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Mating Cycles	Body Material	Insertion Loss	Voltage Rating	Center Contact Plating	Frequency - Max [Max]	Mounting Type	Connector Type	Housing Color	Connector Style	Number of Ports	Cable Group	Cable Group [Min]	Cable Group [Max]	Includes	Mounting Feature	Style	Conversion Type	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Type	Adapter Series
Amphenol RF 152119	Solder	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Solder	500	Brass	0.3 dB	335 V	Gold	10 GHz	Through Hole	Jack Male Pin	Silver	SMC	1
Amphenol RF 152138	Solder	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Solder	500	Brass	0.6 dB	335 V	Gold	10 GHz	Free Hanging (In-Line) Right Angle	Female Socket Plug	Gold	SMC	1	RG-405 Semi Rigid	0.085 in	0.086 in	1 Connector 1 End Cap
Amphenol RF 152126	Solder Cup	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Solder	500	Brass	0.3 dB	335 V	Nickel	10 GHz		Male Pin Receptacle	Silver	SMC	1				1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut
Amphenol RF 152135	Solder	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Solder	500	Brass	0.3 dB	335 V	Gold	10 GHz	Free Hanging (In-Line)	Female Socket Plug	Gold	SMC	1	RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 152101	Solder	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Crimp	500	Brass	0.3 dB	335 V	Gold	10 GHz	Free Hanging (In-Line)	Female Socket Plug	Silver	SMC	1	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 152103	Crimp	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Crimp	500	Brass	0.3 dB	335 V	Gold	10 GHz	Free Hanging (In-Line)	Jack Male Pin	Gold	SMC	1	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 152141		50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold				500	Brass			Gold	4 GHz	Free Hanging (In-Line)										Straight	Same Series	Female Socket SMC Plug	Male Pin SMC Jack	Plug to Jack	SMC to SMC
