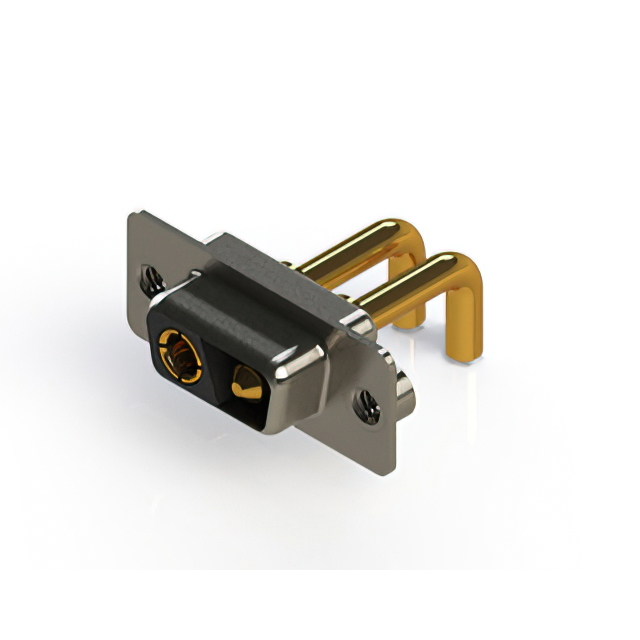

630-2WK2250-3TA
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DE-2WK2, RECEPTACLE, 2 CONTACTS, 2 POWER, SOLDER
630-2WK2250-3TA
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DE-2WK2, RECEPTACLE, 2 CONTACTS, 2 POWER, SOLDER
Description
General part information
630-2WK Series
2 (Coax) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-2WK2250-3TA |
|---|---|
| Backset Spacing | 0.52 in |
| Color | Black |
| Connector Layout | 2WK2, 2W2C, DE, E |
| Connector Style | Combo, D-Sub |
| Connector Type | Male Pins, Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating | 30 A |
| Dielectric Material | Polyester Thermoplastic |
| Finish | Tin Plated |
| Flange Feature | Board Side (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 2W2, 2V2 |
| Position Types | Coax |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Solder |
| Voltage Rating | 125 V |
