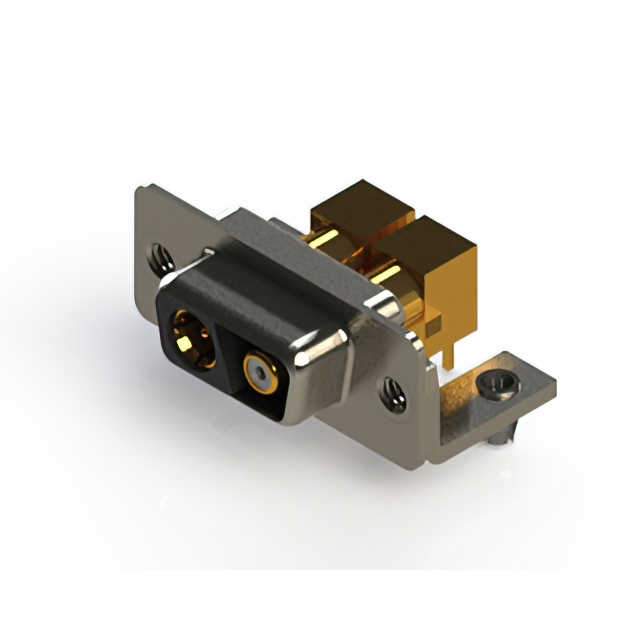

630-2WK2240-5N3

Active

EDAC Inc.

CONN D-SUB RCPT 2POS R/A SLDR

630-2WK2240-5N3

Active

EDAC Inc.

CONN D-SUB RCPT 2POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

630-2WK Series

2 (Coax) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	630-2WK2240-5N3

Backset Spacing	0.37 in
Color	Black
Connector Layout	2WK2, 2W2C, DE, E
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Coax
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Board Lock
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	2W2, 2V2
Position Types	Coax
Shell Material	Steel
Shell Size	1
Termination	Solder
Voltage Rating	125 V

630-2WK Series

...

Part	Backset Spacing	Shell Material	Finish	Flange Feature	Termination	Material Flammability Rating	Contact Finish	Connector Type	Shell Size	Connector Layout	Part Code	Mounting Type	Connector Style	Current Rating	Number of Rows	Contact Finish Thickness	Contact Type	Number of Positions	Position Types	Voltage Rating	Color	Contact Material	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness	Features
EDAC Inc. 630-2WK2640-2NA	0.52 in	Steel	Nickel Plated	Board Side (M3)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	20 A	1	30 µin	Power	2	Coax	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C
EDAC Inc. 630-2WK2240-4N2	0.52 in	Steel	Nickel Plated	Housing Shell (4-40)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	40 A	1	0	Power	2	Coax	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C	Flash	Flash
EDAC Inc. 630-2WK2240-4TA	0.52 in	Steel	Tin Plated	Board Side (M3)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	40 A	1	0	Power	2	Coax	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C	Flash	Flash
EDAC Inc. 630-2WK2650-2N3	0.52 in	Steel	Nickel Plated	Housing Shell (4-40)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	20 A	1	30 µin	Power	2	Power	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C			Board Lock Mounting Brackets
EDAC Inc. 630-2WK2640-2N6	0.52 in	Steel	Nickel Plated	Mating Side (4-40)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	20 A	1	30 µin	Power	2	Coax	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C			Board Lock
EDAC Inc. 630-2WK2240-5N3	0.37 in	Steel	Nickel Plated	Housing Shell (4-40)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub		1	0	Coax	2	Coax	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C	Flash	Flash	Board Lock Mounting Brackets
EDAC Inc. 630-2WK2250-3TA	0.52 in	Steel	Tin Plated	Board Side (M3)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	30 A	1	0	Power	2	Coax	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C	Flash	Flash
EDAC Inc. 630-2WK2250-1NA	0.52 in	Steel	Nickel Plated	Board Side (M3)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	10 A	1	0	Power	2	Coax	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C	Flash	Flash
EDAC Inc. 630-2WK2650-1NE	0.52 in	Steel	Nickel Plated	Mating Side (M3)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	10 A	1	30 µin	Power	2	Power	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C			Mounting Brackets
EDAC Inc. 630-2WK2650-1N5	0.52 in	Steel	Nickel Plated	Mating Side (4-40)	Solder	UL94 V-0	Gold	Female Sockets Male Pins Receptacle	1	2W2C 2WK2 DE E	2V2 2W2	Right Angle Through Hole	Combo D-Sub	10 A	1	30 µin	Power	2	Power	125 V	Black	Copper Alloy	Polyester Thermoplastic	125 °C	-55 °C			Board Lock Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

630-2WK2240-5N3 | Datasheet
