151208-7422-TB

Active

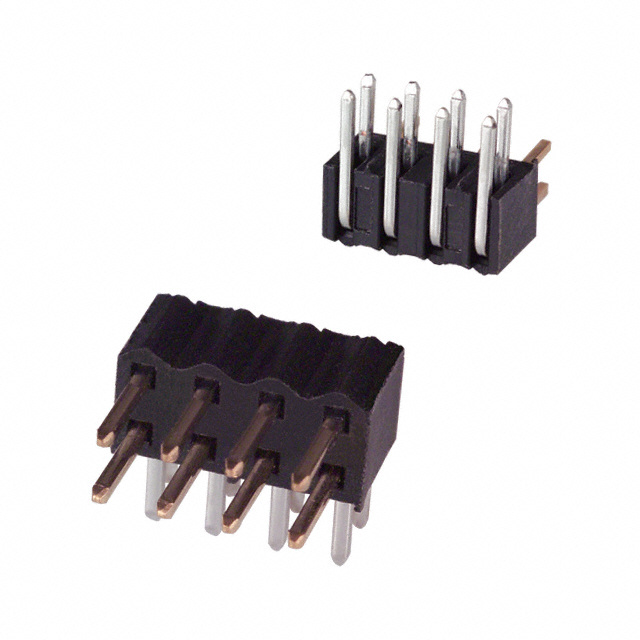

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents1512 Series Datasheet

151208-7422-TB

Active

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

Documents1512 Series Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

151208 Series

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

1512 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	151208-7422-TB	151208 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.86 mm	3.3 - 3.86 mm
Contact Length - Mating	0.152 in	0.13 - 0.152 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Features	-	Pick and Place
Insulation Color	Black	Black
Insulation Height [z]	0.165 in	0.06 - 0.165 in
Insulation Height [z]	4.2 mm	1.52 - 4.2 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	7.8 - 8.36 mm
Overall Contact Length	-	0.307 - 0.329 in
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

151208 Series

CONN HEADER VERT 8POS 2MM
