151208-2420-RB-WB

Active

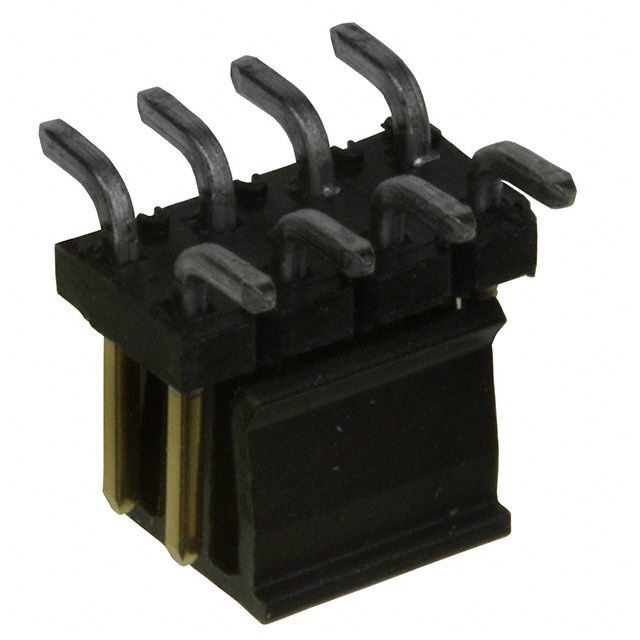

CONN HEADER SMD 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

151208-2420-RB-WB

Active

CONN HEADER SMD 8POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

151208 Series

Connector Header Surface Mount 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	151208-2420-RB-WB	151208 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.86 mm	3.3 - 3.86 mm
Contact Length - Mating	0.152 in	0.13 - 0.152 in
Contact Length - Post	-	0.118 in
Contact Length - Post	-	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place
Insulation Color	Black	Black
Insulation Height [z]	0.06 in	0.06 - 0.165 in
Insulation Height [z]	1.52 mm	1.52 - 4.2 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	7.8 - 8.36 mm
Overall Contact Length	-	0.307 - 0.329 in
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Style	-	Board to Board, Cable
Termination	Solder	Solder

151208 Series

CONN HEADER VERT 8POS 2MM

Part	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Style	Insulation Height [z]	Insulation Height [z]	Shrouding	Connector Type	Contact Material	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions	Contact Finish - Mating	Fastening Type	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Features
3M 151208-8422-RB	2	200 µin	5.08 µm	Square	30 Áin	0.76 Ám	Black	Board to Board, Cable	0.06 in	1.52 mm	Unshrouded	Header	Copper Alloy	0.118 in	3 mm	Through Hole	Male Pin	0.079 in	2 mm	Tin	UL94 V-0	8.36 mm	0.329 in	105 ░C	-55 °C	Solder	8	Gold	Push-Pull	All	0.079 in	2 mm	3.86 mm	0.152 in
3M 151208-7422-RB	2	200 µin	5.08 µm	Square	30 Áin	0.76 Ám	Black	Board to Board, Cable	0.165 in	4.2 mm	Unshrouded	Header	Copper Alloy	0.118 in	3 mm	Through Hole, Right Angle	Male Pin	0.079 in	2 mm	Tin	UL94 V-0			105 ░C	-55 °C	Solder	8	Gold	Push-Pull	All	0.079 in	2 mm	3.86 mm	0.152 in
3M 151208-2420-RB-WB	2	200 µin	5.08 µm	Square	30 Áin	0.76 Ám	Black		0.06 in	1.52 mm	Unshrouded	Header	Copper Alloy			Surface Mount	Male Pin	0.079 in	2 mm	Tin	UL94 V-0			105 ░C	-55 °C	Solder	8	Gold	Push-Pull	All	0.079 in	2 mm	3.86 mm	0.152 in	Pick and Place
3M 151208-7422-TB	2	200 µin	5.08 µm	Square	30 Áin	0.76 Ám	Black	Board to Board, Cable	0.165 in	4.2 mm	Unshrouded	Header	Copper Alloy	0.118 in	3 mm	Through Hole, Right Angle	Male Pin	0.079 in	2 mm	Tin-Lead	UL94 V-0			105 ░C	-55 °C	Solder	8	Gold	Push-Pull	All	0.079 in	2 mm	3.86 mm	0.152 in
3M 151208-2320-RB	2	200 µin	5.08 µm	Square	30 Áin	0.76 Ám	Black		0.06 in	1.52 mm	Unshrouded	Header	Copper Alloy			Surface Mount	Male Pin	0.079 in	2 mm	Tin	UL94 V-0			105 ░C	-55 °C	Solder	8	Gold	Push-Pull	All	0.079 in	2 mm	3.3 mm	0.13 in
3M 151208-8421-RB	2	200 µin	5.08 µm	Square	30 Áin	0.76 Ám	Black	Board to Board, Cable	0.06 in	1.52 mm	Unshrouded	Header	Copper Alloy	0.118 in	3 mm	Through Hole	Male Pin	0.079 in	2 mm	Tin	UL94 V-0	7.8 mm	0.307 in	105 ░C	-55 °C	Solder	8	Gold	Push-Pull	All	0.079 in	2 mm	3.86 mm	0.152 in
