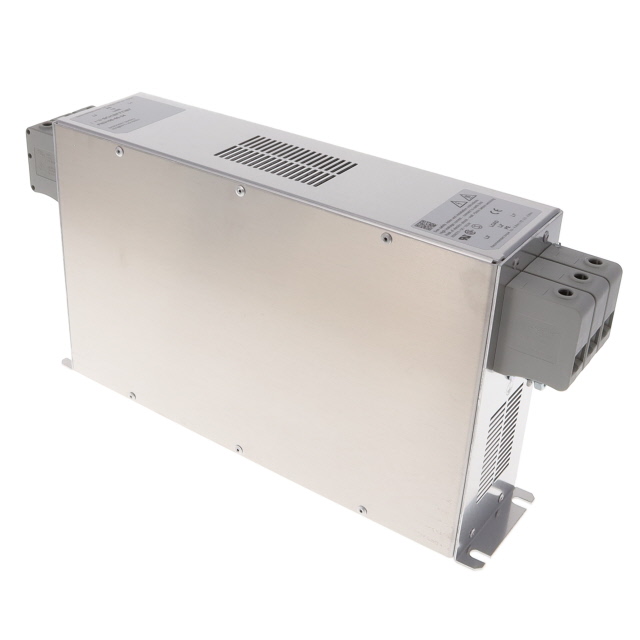

FN3100-50-34

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 50A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 50A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	FN3100-50-34

Applications	Regenerative Motor Drive
Approval Agency	UR, SEMKO, CSA
Configuration	Single Stage
Current	50 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Part	Voltage - Rated AC (Phase to Phase)	Applications	Termination Style	Current	Filter Type	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)	Approval Agency	Operating Temperature [custom]	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]
TE Connectivity Raychem Cable Protection FN3100-230-40	520 V	Regenerative Motor Drive	Terminal Block	230 A	Three Phase (Delta)	Chassis Mount	300 V	CSA SEMKO UR	-25 °C 100 °C	Single Stage	60 Hz	DC
TE Connectivity Raychem Cable Protection FN3100-80-35	520 V	Regenerative Motor Drive	Terminal Block	80 A	Three Phase (Delta)	Chassis Mount	300 V	CSA SEMKO UR	-25 °C 100 °C	Single Stage	60 Hz	DC
TE Connectivity Raychem Cable Protection FN3100-200-40	520 V	Regenerative Motor Drive	Terminal Block	200 A	Three Phase (Delta)	Chassis Mount	300 V	CSA SEMKO UR	-25 °C 100 °C	Single Stage	60 Hz	DC
TE Connectivity Raychem Cable Protection FN3100-200-40	520 V	Regenerative Motor Drive	Terminal Block	200 A	Three Phase (Delta)	Chassis Mount	300 V	CSA SEMKO UR	-25 °C 100 °C	Single Stage	60 Hz	DC
TE Connectivity Raychem Cable Protection FN3100-50-34	520 V	Regenerative Motor Drive	Terminal Block	50 A	Three Phase (Delta)	Chassis Mount	300 V	CSA SEMKO UR	-25 °C 100 °C	Single Stage	60 Hz	DC
TE Connectivity Raychem Cable Protection FN3100-35-33	520 V	Regenerative Motor Drive	Terminal Block		Three Phase (Delta)	Chassis Mount	300 V	CSA SEMKO UR	-25 °C 100 °C	Single Stage	60 Hz	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 50 A DC ~ 60Hz Single Stage Terminal Block
