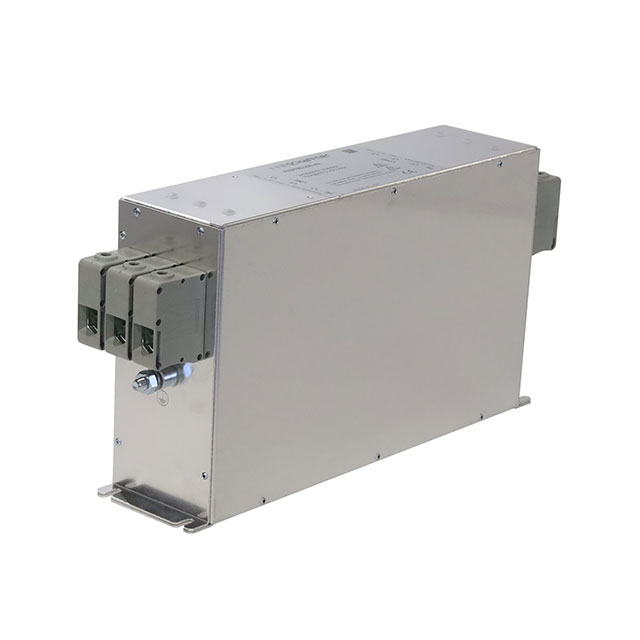

FN3100-230-40
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 230A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN3100-230-40
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 230A CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN3100-230-40 |
|---|---|
| Applications | Regenerative Motor Drive |
| Approval Agency | UR, SEMKO, CSA |
| Configuration | Single Stage |
| Current | 230 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 300 V |
| Voltage - Rated AC (Phase to Phase) | 520 V |
FN3100 Series
| Part | Voltage - Rated AC (Phase to Phase) | Applications | Termination Style | Current | Filter Type | Mounting Type | Voltage - Rated AC (Phase to Ground/Neutral) | Approval Agency | Operating Temperature [custom] | Configuration | Frequency - Operating [Max] | Frequency - Operating [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 520 V | Regenerative Motor Drive | Terminal Block | 230 A | Three Phase (Delta) | Chassis Mount | 300 V | CSA SEMKO UR | -25 °C 100 °C | Single Stage | 60 Hz | DC |
TE Connectivity Raychem Cable Protection | 520 V | Regenerative Motor Drive | Terminal Block | 80 A | Three Phase (Delta) | Chassis Mount | 300 V | CSA SEMKO UR | -25 °C 100 °C | Single Stage | 60 Hz | DC |
TE Connectivity Raychem Cable Protection | 520 V | Regenerative Motor Drive | Terminal Block | 200 A | Three Phase (Delta) | Chassis Mount | 300 V | CSA SEMKO UR | -25 °C 100 °C | Single Stage | 60 Hz | DC |
TE Connectivity Raychem Cable Protection | 520 V | Regenerative Motor Drive | Terminal Block | 200 A | Three Phase (Delta) | Chassis Mount | 300 V | CSA SEMKO UR | -25 °C 100 °C | Single Stage | 60 Hz | DC |
TE Connectivity Raychem Cable Protection | 520 V | Regenerative Motor Drive | Terminal Block | 50 A | Three Phase (Delta) | Chassis Mount | 300 V | CSA SEMKO UR | -25 °C 100 °C | Single Stage | 60 Hz | DC |
TE Connectivity Raychem Cable Protection | 520 V | Regenerative Motor Drive | Terminal Block | Three Phase (Delta) | Chassis Mount | 300 V | CSA SEMKO UR | -25 °C 100 °C | Single Stage | 60 Hz | DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1054.76 | |
Description
General part information
FN3100 Series
Three Phase (Delta) EMC/EMI Line Filter 230 A DC ~ 60Hz Single Stage Terminal Block
