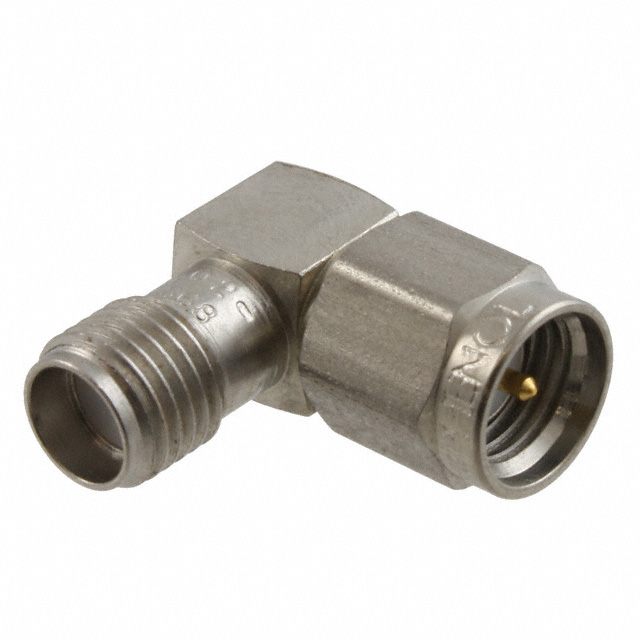

901-125-11SF

Active

Amphenol RF

CONN ADAPT JACK TO PLUG SMA

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK TO PLUG SMA

Technical Specifications

Parameters and characteristics for this part

Specification	901-125-11SF

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Number of Ports	Mounting Type	Dielectric Material	Ingress Protection	Connector Type	Body Finish	Center Contact Material	Cable Group	Mating Cycles	Connector Style	Voltage Rating	Frequency - Max [Max]	Shield Termination	Impedance	Includes	Housing Color	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Body Material	Adapter Type	Convert To (Adapter End)	Style	Adapter Series	Conversion Type	Convert From (Adapter End)
Amphenol RF 901-128-11	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Weatherproof	Male Pin Plug	Gold	Beryllium Copper	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	SMA	375 V	12.4 GHz	Clamp	50 Ohms	1 Clamp 1 Connector 1 Contact	Gold	Gold	-65 ░C	165 °C	Solder	Beryllium Copper
Amphenol RF 901-125-11		Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)			Gold	Beryllium Copper					12.4 GHz		50 Ohms			Gold	-65 ░C	165 °C		Stainless Steel	Plug to Jack	Female Socket SMA Jack	Right Angle	SMA to SMA	Same Series	SMA Plug Male Pin
Amphenol RF 901-125-11SF		Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)				Beryllium Copper		500			12.4 GHz		50 Ohms			Gold	-65 ░C	165 °C		Stainless Steel	Plug to Jack	Male Pin SMA Plug	Right Angle	SMA to SMA	Same Series	Female Socket SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 74.08

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
