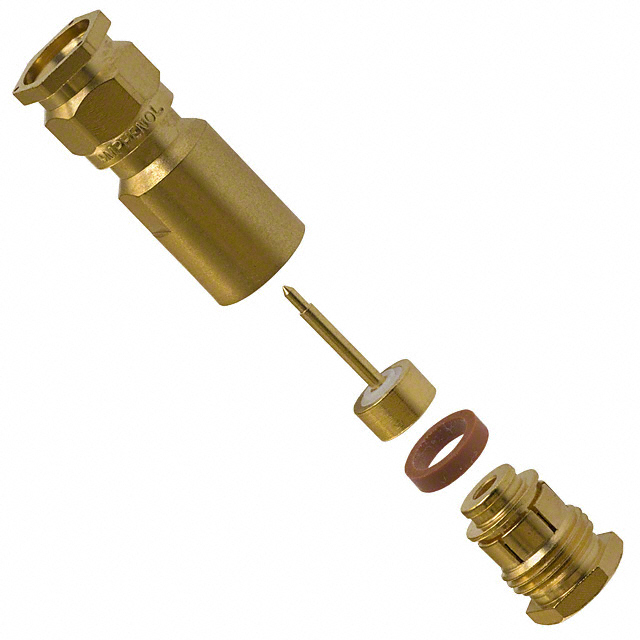

901-128-11

Active

Amphenol RF

CONN SMA PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	901-128-11

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Contact, 1 Clamp, 1 Connector
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	375 V

Part	Number of Ports	Mounting Type	Dielectric Material	Ingress Protection	Connector Type	Body Finish	Center Contact Material	Cable Group	Mating Cycles	Connector Style	Voltage Rating	Frequency - Max [Max]	Shield Termination	Impedance	Includes	Housing Color	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Body Material	Adapter Type	Convert To (Adapter End)	Style	Adapter Series	Conversion Type	Convert From (Adapter End)
Amphenol RF 901-128-11	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Weatherproof	Male Pin Plug	Gold	Beryllium Copper	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	SMA	375 V	12.4 GHz	Clamp	50 Ohms	1 Clamp 1 Connector 1 Contact	Gold	Gold	-65 ░C	165 °C	Solder	Beryllium Copper
Amphenol RF 901-125-11		Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)			Gold	Beryllium Copper					12.4 GHz		50 Ohms			Gold	-65 ░C	165 °C		Stainless Steel	Plug to Jack	Female Socket SMA Jack	Right Angle	SMA to SMA	Same Series	SMA Plug Male Pin
Amphenol RF 901-125-11SF		Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)				Beryllium Copper		500			12.4 GHz		50 Ohms			Gold	-65 ░C	165 °C		Stainless Steel	Plug to Jack	Male Pin SMA Plug	Right Angle	SMA to SMA	Same Series	Female Socket SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 80.30

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
