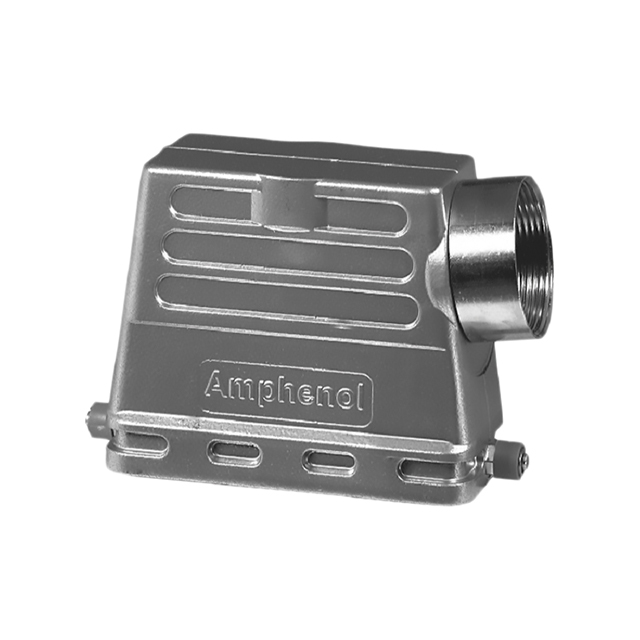

C146 10R016 507 8
ActiveAmphenol Tuchel Industrial
CONN HOOD SIDE ENTRY SZE16 M40
Deep-Dive with AI
Search across all available documentation for this part.
C146 10R016 507 8
ActiveAmphenol Tuchel Industrial
CONN HOOD SIDE ENTRY SZE16 M40
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 10R016 507 8 |
|---|---|
| Connector Type | Hood |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E16 |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 76 mm |
| Size / Dimension [z] | 2.992 in |
| Style | Side Entry |
C146 10R016 Series
| Part | Connector Type | Lock Location | Ingress Protection | Size | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Style | Housing Material | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Hood | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | E16 | M32 | 100 °C | -40 °C | Side Entry | Aluminum Alloy Die Cast | 93.5 mm | 3.681 " | 1.693 in | 2.441 " | 43 mm | 62 mm |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | E16 | M25 | 100 °C | -40 °C | Side Entry | Aluminum Die Cast | 93.5 mm | 3.681 " | 1.693 in | 2.992 in | 43 mm | 76 mm |
Amphenol Tuchel Industrial | Hood | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | E16 | 100 °C | -40 °C | Side Entry | Aluminum Die Cast | 93.5 mm | 3.681 " | 1.693 in | 2.992 in | 43 mm | 76 mm | |
Amphenol Tuchel Industrial | Hood | Locking Clip (2) on Hood | IP65 - Dust Tight Water Resistant | E16 | M32 | 100 °C | -40 °C | Dual Top Entry | Aluminum Die Cast | 93.5 mm | 3.681 " | 1.693 in | 2.992 in | 43 mm | 76 mm |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | E16 | M25 | 100 °C | -40 °C | Side Entry | Aluminum Alloy Die Cast | 93.5 mm | 3.681 " | 1.693 in | 2.441 " | 43 mm | 62 mm |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | E16 | M32 | 100 °C | -40 °C | Side Entry | Aluminum Die Cast | 93.5 mm | 3.681 " | 1.693 in | 2.992 in | 43 mm | 76 mm |
Amphenol Tuchel Industrial | Hood | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | E16 | 100 °C | -40 °C | Side Entry | Aluminum Die Cast | 93.5 mm | 3.681 " | 1.693 in | 2.992 in | 43 mm | 76 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 27.85 | |
Description
General part information
C146 10R016 Series
Hood Connector Side Entry M40 E16 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
