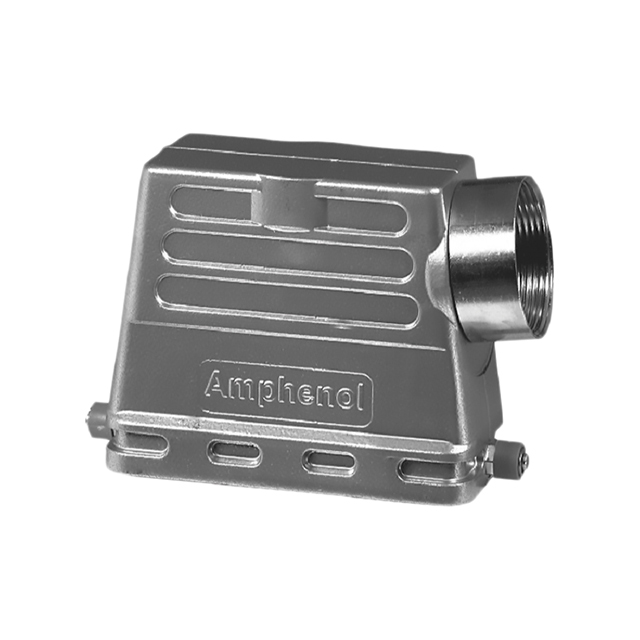

C146 10R016 556 1

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE16 M25

Deep-Dive with AI

Search across all available documentation for this part.

C146 10R016 556 1

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE16 M25

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10R016 556 1

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E16
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.441 "
Size / Dimension [z]	62 mm
Style	Side Entry
Thread Size	M25

C146 10R016 Series

Part	Connector Type	Lock Location	Ingress Protection	Size	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
Amphenol Tuchel Industrial C146 10R016 500 1	Hood	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	E16	M32	100 °C	-40 °C	Side Entry	Aluminum Alloy Die Cast	93.5 mm	3.681 "	1.693 in	2.441 "	43 mm	62 mm
Amphenol Tuchel Industrial C146 10R016 556 8	Hood	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	E16	M25	100 °C	-40 °C	Side Entry	Aluminum Die Cast	93.5 mm	3.681 "	1.693 in	2.992 in	43 mm	76 mm
Amphenol Tuchel Industrial C146 10R016 501 8	Hood	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	E16		100 °C	-40 °C	Side Entry	Aluminum Die Cast	93.5 mm	3.681 "	1.693 in	2.992 in	43 mm	76 mm
Amphenol Tuchel Industrial C146 10R016 902 8	Hood	Locking Clip (2) on Hood	IP65 - Dust Tight Water Resistant	E16	M32	100 °C	-40 °C	Dual Top Entry	Aluminum Die Cast	93.5 mm	3.681 "	1.693 in	2.992 in	43 mm	76 mm
Amphenol Tuchel Industrial C146 10R016 556 1	Hood	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	E16	M25	100 °C	-40 °C	Side Entry	Aluminum Alloy Die Cast	93.5 mm	3.681 "	1.693 in	2.441 "	43 mm	62 mm
Amphenol Tuchel Industrial C146 10R016 506 8	Hood	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	E16	M32	100 °C	-40 °C	Side Entry	Aluminum Die Cast	93.5 mm	3.681 "	1.693 in	2.992 in	43 mm	76 mm
Amphenol Tuchel Industrial C146 10R016 507 8	Hood	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	E16		100 °C	-40 °C	Side Entry	Aluminum Die Cast	93.5 mm	3.681 "	1.693 in	2.992 in	43 mm	76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 22.48

Description

General part information

C146 10R016 Series

Hood Connector Side Entry M25 E16 IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

No documents available
