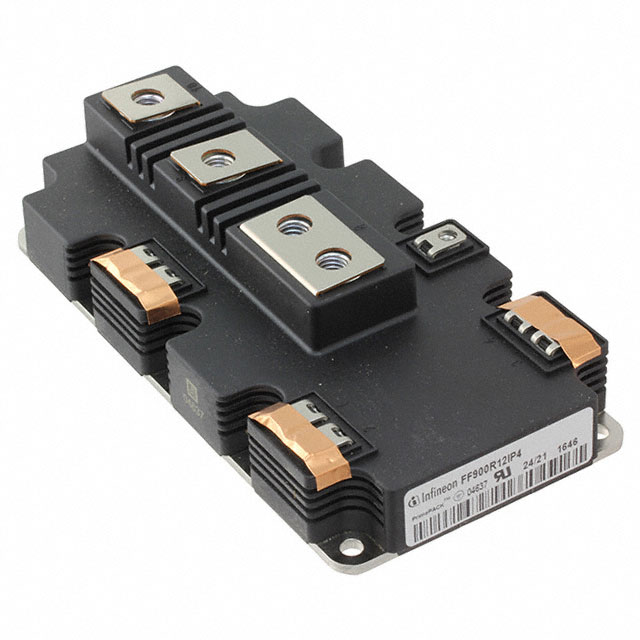

FF900R12IP4BOSA2

Active

Infineon Technologies

THE FF900R12IP4 IS A DUAL IGBT4 - P4 MODULE IN A PRIMEPACK™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MCDS - PP2 89x172 +2

FF900R12IP4BOSA2

Active

Infineon Technologies

THE FF900R12IP4 IS A DUAL IGBT4 - P4 MODULE IN A PRIMEPACK™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.

Deep-Dive with AI

DocumentsDatasheet MCDS - PP2 89x172 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FF900R12IP4BOSA2

Configuration	Single
Current - Collector (Ic) (Max) [Max]	900 A
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	54 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	5100 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.05 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FF900R12 Series

Part	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Vce(on) (Max) @ Vge, Ic	Mounting Type	Input	IGBT Type	Current - Collector Cutoff (Max) [Max]	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]
Infineon Technologies FF900R12IP4PBOSA1	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	2 Independent
Infineon Technologies FF900R12IE4BOSA1	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	Single	150 °C	-40 °C	5100 W
Infineon Technologies FF900R12ME7WB11BPSA1	122 nF	890 A	AG-ECONOD	1200 V	Module	1.8 V	Chassis Mount	Standard	Trench Field Stop		Half Bridge Inverter	175 °C	-40 C	20 mW
Infineon Technologies FF900R12ME7B11NPSA1	122 nF	900 A	AG-ECONOD-3	1200 V	Module	1.8 V	Chassis Mount	Standard	Trench Field Stop		2 Independent	175 °C	-40 C	20 mW
Infineon Technologies FF900R12IP4BOSA2	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	Single	150 °C	-40 °C	5100 W
Infineon Technologies FF900R12IE4VPBOSA1	54 nF	900 A	Module	1200 V	Module	2.1 V	Chassis Mount	Standard	Trench Field Stop	5 mA	Half Bridge			20 mW
Infineon Technologies FF900R12IE4PBOSA1	54 nF	900 A	Module	1200 V	Module	2.1 V	Chassis Mount	Standard	Trench Field Stop	5 mA	Half Bridge			20 mW
Infineon Technologies FF900R12IP4VBOSA1	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	2 Independent			5100 W
Infineon Technologies FF900R12IE4VBOSA1	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	2 Independent			5100 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 439.68

Description

General part information

FF900R12 Series

PrimePACK™ 21200 V, 900 A half-bridge dualIGBT modulewith TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode, NTC and soft switching chip. Also available withpre-applied Thermal Interface Material.
