FF900R12ME7B11NPSA1

Active

Infineon Technologies

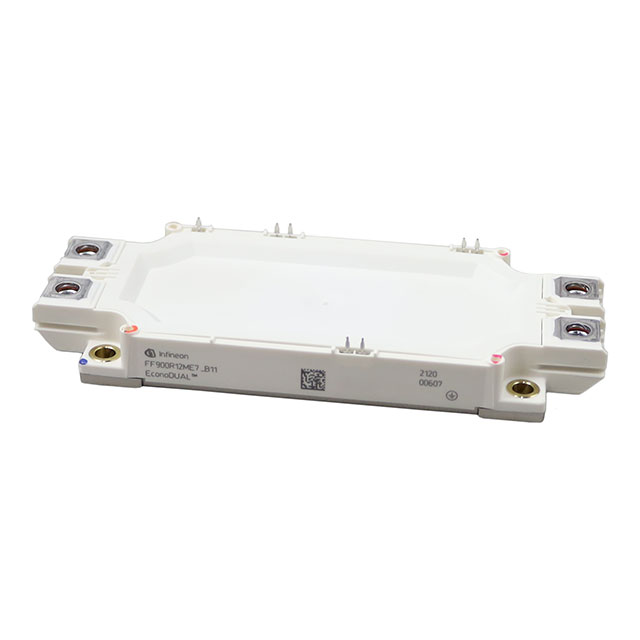

THE FF900R12ME7_B11 IS A DUAL IGBT7 - E7 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

FF900R12ME7B11NPSA1

Active

Infineon Technologies

THE FF900R12ME7_B11 IS A DUAL IGBT7 - E7 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FF900R12ME7B11NPSA1

Configuration	2 Independent
Current - Collector (Ic) (Max) [Max]	900 A
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	122 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	AG-ECONOD-3
Vce(on) (Max) @ Vge, Ic	1.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FF900R12 Series

Part	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Vce(on) (Max) @ Vge, Ic	Mounting Type	Input	IGBT Type	Current - Collector Cutoff (Max) [Max]	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]
Infineon Technologies FF900R12IP4PBOSA1	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	2 Independent
Infineon Technologies FF900R12IE4BOSA1	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	Single	150 °C	-40 °C	5100 W
Infineon Technologies FF900R12ME7WB11BPSA1	122 nF	890 A	AG-ECONOD	1200 V	Module	1.8 V	Chassis Mount	Standard	Trench Field Stop		Half Bridge Inverter	175 °C	-40 C	20 mW
Infineon Technologies FF900R12ME7B11NPSA1	122 nF	900 A	AG-ECONOD-3	1200 V	Module	1.8 V	Chassis Mount	Standard	Trench Field Stop		2 Independent	175 °C	-40 C	20 mW
Infineon Technologies FF900R12IP4BOSA2	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	Single	150 °C	-40 °C	5100 W
Infineon Technologies FF900R12IE4VPBOSA1	54 nF	900 A	Module	1200 V	Module	2.1 V	Chassis Mount	Standard	Trench Field Stop	5 mA	Half Bridge			20 mW
Infineon Technologies FF900R12IE4PBOSA1	54 nF	900 A	Module	1200 V	Module	2.1 V	Chassis Mount	Standard	Trench Field Stop	5 mA	Half Bridge			20 mW
Infineon Technologies FF900R12IP4VBOSA1	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	2 Independent			5100 W
Infineon Technologies FF900R12IE4VBOSA1	54 nF	900 A	Module	1200 V	Module	2.05 V	Chassis Mount	Standard	Trench Field Stop	5 mA	2 Independent			5100 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 224.18
		10	$ 212.45
Newark	Each	1	$ 206.44
		5	$ 199.74
		10	$ 193.06

Description

General part information

FF900R12 Series

EconoDUAL™ 31200 V, 900 A dualTRENCHSTOP™ IGBT7module with emitter controlled 7 diode, NTC andPressFITcontact technology. Also available withpre-applied Thermal Interface Material.
