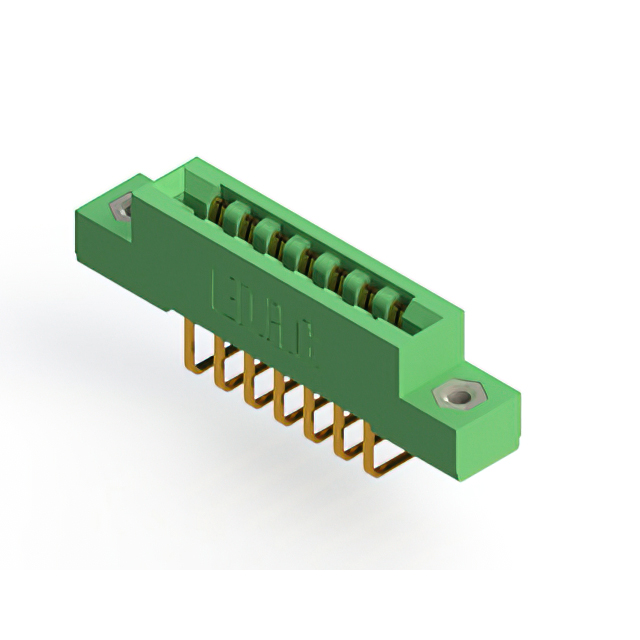

807-007-558-108

Active

EDAC Inc.

CONN EDGE SGL FMALE 7POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-007-558-108

Active

EDAC Inc.

CONN EDGE SGL FMALE 7POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-007-558-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions/Bay/Row [custom]	7
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

807-007 Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Termination Rows	Color	Number of Positions/Bay/Row [custom]	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Number of Rows	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Type	Material - Insulation	Gender	Mounting Type	Contact Material	Number of Positions	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 807-007-554-107	125 °C	-40 °C	Flush Mount M3 Threaded Insert Top Opening	1	Green	7	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	2	Gold	Solder	10 Áin	0.25 Ám	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Through Hole Right Angle	Copper Alloy	14	0.156 in	3.96 mm
EDAC Inc. 807-007-547-101	125 °C	-40 °C		1	Green	7	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	1	Gold	Wire Wrap	10 Áin	0.25 Ám	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Through Hole	Copper Alloy	7	0.156 in	3.96 mm
EDAC Inc. 807-007-447-104	125 °C	-40 °C	Flush Mount Top Opening Unthreaded	1	Green	7	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	1	Tin	Wire Wrap			Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Through Hole	Copper Alloy	7	0.156 in	3.96 mm	3.96 mm	0.156 in
EDAC Inc. 807-007-558-108	125 °C	-40 °C	4-40 Flush Mount Threaded Insert Top Opening	1	Green	7	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	1	Gold	Solder	10 Áin	0.25 Ám	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Through Hole Right Angle	Copper Alloy	7	0.156 in	3.96 mm
EDAC Inc. 807-007-454-101	125 °C	-40 °C		1	Green	7	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	2	Tin	Solder			Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Through Hole Right Angle	Copper Alloy	14	0.156 in	3.96 mm
EDAC Inc. 807-007-401-102	125 °C	-40 °C	Flush Mount Top Opening Unthreaded	1	Green	7	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	2	Tin	Solder Eyelet(s)			Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Through Hole	Copper Alloy	14	0.156 in	3.96 mm	3.25 mm	0.128 "
EDAC Inc. 807-007-557-107	125 °C	-40 °C	Flush Mount M3 Threaded Insert Top Opening	1	Green	7	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	2	Gold	Solder	10 Áin	0.25 Ám	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Female	Through Hole Right Angle	Copper Alloy	14	0.156 in	3.96 mm
EDAC Inc. 807-007-459-108	125 °C	-40 °C	4-40 Flush Mount Threaded Insert Top Opening	1	Green	7	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	1	Tin	Solder			Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Through Hole Right Angle	Copper Alloy	7	0.156 in	3.96 mm
EDAC Inc. 807-007-531-108	125 °C	-40 °C	4-40 Flush Mount Threaded Insert Top Opening	1	Green	7	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	1	Gold	Solder	10 Áin	0.25 Ám	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Through Hole	Copper Alloy	7	0.156 in	3.96 mm
EDAC Inc. 807-007-458-104	125 °C	-40 °C	Flush Mount Top Opening Unthreaded	1	Green	7	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	1	Tin	Solder			Non Specified - Single Edge	Diallyl Phthalate (DAP)	Female	Through Hole Right Angle	Copper Alloy	7	0.156 in	3.96 mm	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 71.24
Newark	Each	1	$ 82.23
		100	$ 57.27
		250	$ 50.18
		500	$ 45.68
		1000	$ 38.13

Description

General part information

807-007 Series

7 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
