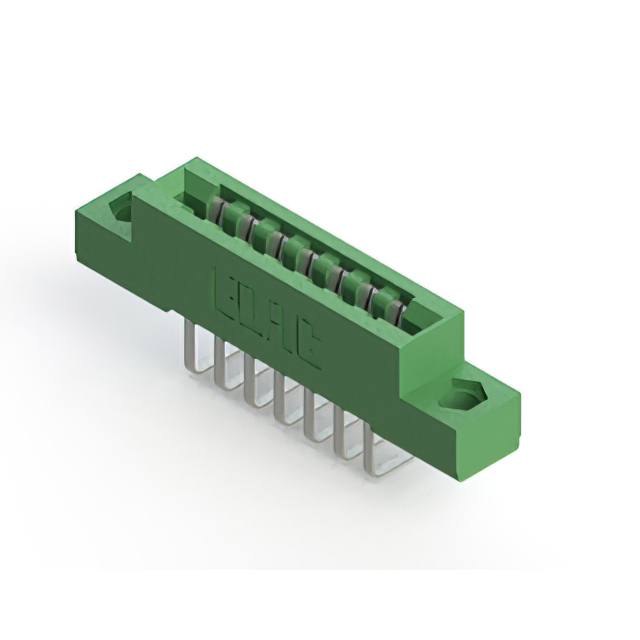

807-007-458-104

Active

EDAC Inc.

CONN EDGE SGL FML 7POS 0.156 TIN

807-007-458-104

Active

EDAC Inc.

CONN EDGE SGL FML 7POS 0.156 TIN

Description Specifications Series Pricing CAD Documents

Description

General part information

807-007 Series

7 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	807-007-458-104

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

807-007 Series

...

Part	Contact Type	Flange Feature	Card Type	Read Out	Number of Positions	Contact Material	Contact Finish	Contact Finish Thickness	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Termination	Gender	Number of Rows	Card Thickness (Min)	Card Thickness (Max)	Pitch	Color	Termination Rows	Material - Insulation	Flange Feature Diameter
EDAC Inc. 807-007-554-107	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	Dual Edge Non Specified	Dual	7 14	Copper Alloy	Gold	10 Ąin	125 °C	-40 °C	Right Angle Through Hole	Solder	Female	2	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate
EDAC Inc. 807-007-547-101	Semi Bellows		Non Specified Single Edge	Single	7	Copper Alloy	Gold	10 Ąin	125 °C	-40 °C	Through Hole	Wire Wrap	Female	1	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate
EDAC Inc. 807-007-447-104	Semi Bellows	Flush Mount Top Opening Unthreaded	Non Specified Single Edge	Single	7	Copper Alloy	Tin		125 °C	-40 °C	Through Hole	Wire Wrap	Female	1	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate	0.156 in
EDAC Inc. 807-007-454-101	Semi Bellows		Dual Edge Non Specified	Dual	7 14	Copper Alloy	Tin		125 °C	-40 °C	Right Angle Through Hole	Solder	Female	2	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate
EDAC Inc. 807-007-401-102	Semi Bellows	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Dual	7 14	Copper Alloy	Tin		125 °C	-40 °C	Through Hole	Solder Eyelet(s)	Female	2	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate	0.128 in
EDAC Inc. 807-007-557-107	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	Dual Edge Non Specified	Dual	7 14	Copper Alloy	Gold	10 Ąin	125 °C	-40 °C	Right Angle Through Hole	Solder	Female	2	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate
EDAC Inc. 807-007-447-107	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	Non Specified Single Edge	Single	7	Copper Alloy	Tin		125 °C	-40 °C	Through Hole	Wire Wrap	Female	1	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate
EDAC Inc. 807-007-459-108	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Non Specified Single Edge	Single	7	Copper Alloy	Tin		125 °C	-40 °C	Right Angle Through Hole	Solder	Female	1	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate
EDAC Inc. 807-007-531-108	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Non Specified Single Edge	Single	7	Copper Alloy	Gold	10 Ąin	125 °C	-40 °C	Through Hole	Solder	Female	1	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate
EDAC Inc. 807-007-458-104	Semi Bellows	Flush Mount Top Opening Unthreaded	Non Specified Single Edge	Single	7	Copper Alloy	Tin		125 °C	-40 °C	Right Angle Through Hole	Solder	Female	1	0.054 in	0.07 in	0.156 in	Green	1 rows	DAP Diallyl Phthalate	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

807-007-458-104 | Datasheet
