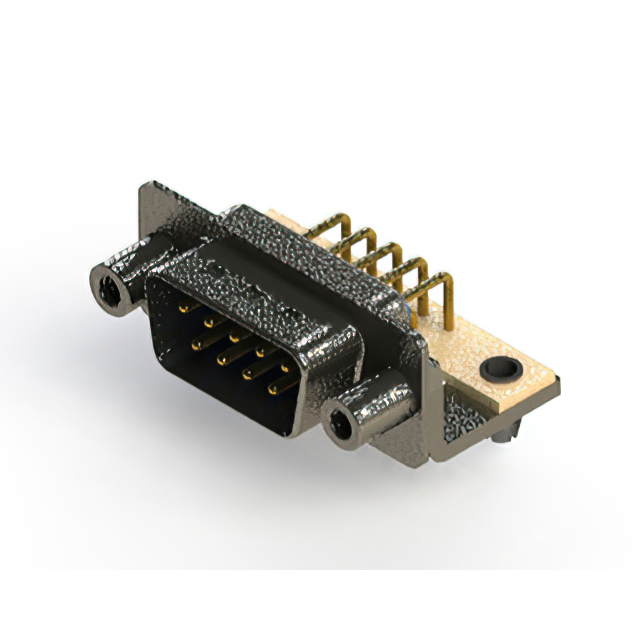

629-M09-340-LN5

Active

EDAC Inc.

629M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-M09-340-LN5

Active

EDAC Inc.

629M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-M09-340-LN5

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

629-M09 Series

...

Part	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Backset Spacing	Backset Spacing	Flange Feature	Number of Rows	Dielectric Material	Connector Type	Color	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Current Rating (Amps)	Shell Material, Finish	Mounting Type	Contact Finish Thickness
EDAC Inc. 629-M09-640-BN3	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0	0.76 Ám	30 Áin	Combo D-Sub	9.4 mm	0.37 in	Housing/Shell (4-40)	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A	Nickel Plated Steel	Through Hole Right Angle
EDAC Inc. 629-M09-340-LN5	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0	0.38 µm	15 µin	Combo D-Sub	9.4 mm	0.37 in	4-40	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Board Lock Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A	Nickel Plated Steel	Through Hole Right Angle
EDAC Inc. 629-M09-240-BT5	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0			Combo D-Sub	9.4 mm	0.37 in	4-40	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Board Lock Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A		Through Hole Right Angle	Flash
EDAC Inc. 629-M09-340-LN6	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0	0.38 µm	15 µin	Combo D-Sub	9.4 mm	0.37 in	4-40 Board Side	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A	Nickel Plated Steel	Through Hole Right Angle
EDAC Inc. 629-M09-340-BN4	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0	0.38 µm	15 µin	Combo D-Sub	9.4 mm	0.37 in	4-40	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A	Nickel Plated Steel	Through Hole Right Angle
EDAC Inc. 629-M09-340-LT6	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0	0.38 µm	15 µin	Combo D-Sub	9.4 mm	0.37 in	4-40 Board Side	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A		Through Hole Right Angle
EDAC Inc. 629-M09-240-BN1	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0			Combo D-Sub	9.4 mm	0.37 in	Housing/Shell (Unthreaded)	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Grounding Indents Shielded	DE E	1	9	5 A	Nickel Plated Steel	Through Hole Right Angle	Flash
EDAC Inc. 629-M09-640-GN6	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0	0.76 Ám	30 Áin	Combo D-Sub	9.4 mm	0.37 in	4-40 Board Side	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A	Nickel Plated Steel	Through Hole Right Angle
EDAC Inc. 629-M09-240-GN4	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0			Combo D-Sub	9.4 mm	0.37 in	4-40	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A	Nickel Plated Steel	Through Hole Right Angle	Flash
EDAC Inc. 629-M09-340-LT4	Solder	Signal	-55 °C	125 °C	Copper Alloy	Gold	UL94 V-0	0.38 µm	15 µin	Combo D-Sub	9.4 mm	0.37 in	4-40	2	Polyamide (PA6T) Nylon 6T	Male Pins Plug	Black	Grounding Indents Mounting Brackets Shielded	DE E	1	9	5 A		Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 6.07

Description

General part information

629-M09 Series

9 Position D-Sub, Combo Plug, Male Pins Connector
