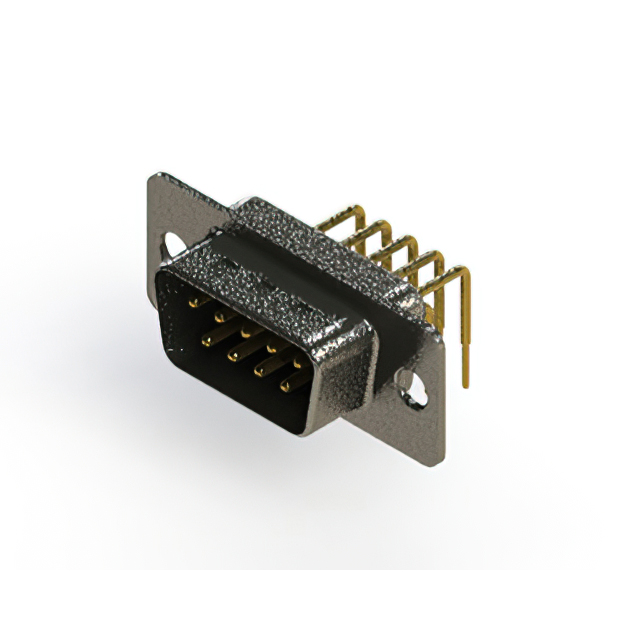

629-M09-240-BN1
ActiveEDAC Inc.
CONN D-SUB PLUG 9POS R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629-M09-240-BN1
ActiveEDAC Inc.
CONN D-SUB PLUG 9POS R/A SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-M09-240-BN1 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
629-M09 Series
...
| Part | Termination | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Backset Spacing | Backset Spacing | Flange Feature | Number of Rows | Dielectric Material | Connector Type | Color | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Current Rating (Amps) | Shell Material, Finish | Mounting Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | 0.76 Ám | 30 Áin | Combo D-Sub | 9.4 mm | 0.37 in | Housing/Shell (4-40) | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Nickel Plated Steel | Through Hole Right Angle | |
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | 0.38 µm | 15 µin | Combo D-Sub | 9.4 mm | 0.37 in | 4-40 | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Board Lock Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Nickel Plated Steel | Through Hole Right Angle | |
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | Combo D-Sub | 9.4 mm | 0.37 in | 4-40 | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Board Lock Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Through Hole Right Angle | Flash | |||
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | 0.38 µm | 15 µin | Combo D-Sub | 9.4 mm | 0.37 in | 4-40 Board Side | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Nickel Plated Steel | Through Hole Right Angle | |
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | 0.38 µm | 15 µin | Combo D-Sub | 9.4 mm | 0.37 in | 4-40 | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Nickel Plated Steel | Through Hole Right Angle | |
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | 0.38 µm | 15 µin | Combo D-Sub | 9.4 mm | 0.37 in | 4-40 Board Side | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Through Hole Right Angle | ||
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | Combo D-Sub | 9.4 mm | 0.37 in | Housing/Shell (Unthreaded) | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Grounding Indents Shielded | DE E | 1 | 9 | 5 A | Nickel Plated Steel | Through Hole Right Angle | Flash | ||
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | 0.76 Ám | 30 Áin | Combo D-Sub | 9.4 mm | 0.37 in | 4-40 Board Side | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Nickel Plated Steel | Through Hole Right Angle | |
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | Combo D-Sub | 9.4 mm | 0.37 in | 4-40 | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Nickel Plated Steel | Through Hole Right Angle | Flash | ||
EDAC Inc. | Solder | Signal | -55 °C | 125 °C | Copper Alloy | Gold | UL94 V-0 | 0.38 µm | 15 µin | Combo D-Sub | 9.4 mm | 0.37 in | 4-40 | 2 | Polyamide (PA6T) Nylon 6T | Male Pins Plug | Black | Grounding Indents Mounting Brackets Shielded | DE E | 1 | 9 | 5 A | Through Hole Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 1.79 | |
Description
General part information
629-M09 Series
9 Position D-Sub, Combo Plug, Male Pins Connector
