Description

General part information

FFSD-20 Series

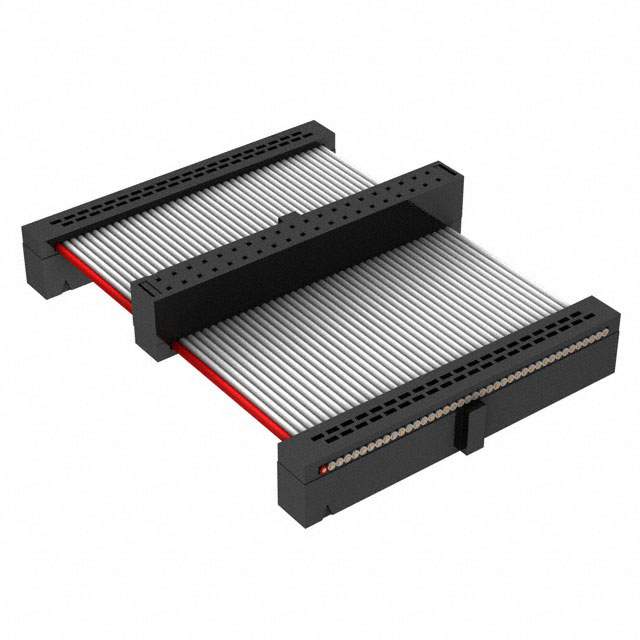

Ribbon Cables / IDC Cables .050" Low Profile Tiger Eye IDC Ribbon Cable Assembly

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-20-D-04.00-01-N-D02-M

Cable Termination	IDC
Color	Gray, Ribbon
Connector Pin Count	3 Pin
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Polarizing Key, Reverse Wiring
Length	0.333 ft
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.025 in
Pitch - Connector	0.05 in
Shielding	Unshielded

FFSD-20 Series

Ribbon Cables / IDC Cables .050" Low Profile Tiger Eye IDC Ribbon Cable Assembly

...

Part	Color	Cable Termination	Shielding	Length	Pitch - Cable	Number of Positions	Contact Finish Thickness	Pitch - Connector	Features	Number of Rows	Connector Type	Contact Finish	Connector Pin Count
Samtec Inc. FFSD-20-D-19.68-01-N-SR	Gray Ribbon	IDC	Unshielded	1.64 ft	0.025 in	40	10 Ąin	0.05 in	Polarizing Key Strain Relief	2	Socket to Socket	Gold
Samtec Inc. FFSD-20-D-02.16-01-N	Gray Ribbon	IDC	Unshielded	0.18 ft	0.025 in	40	10 Ąin	0.05 in	Polarizing Key	2	Socket to Socket	Gold
Samtec Inc. FFSD-20-D-22.44-01-N	Gray Ribbon	IDC	Unshielded	1.87 ft	0.025 in	40	10 Ąin	0.05 in	Polarizing Key	2	Socket to Socket	Gold
Samtec Inc. FFSD-20-S-10.00-01-N-RW	Gray Ribbon	IDC	Unshielded	0.833 ft	0.025 in	40	10 Ąin	0.05 in	Polarizing Key Reverse Wiring	2	Socket to Cable	Gold
Samtec Inc. FFSD-20-D-04.30-01-N	Gray Ribbon	IDC	Unshielded	0.358 ft	0.025 in	40	10 Ąin	0.05 in	Polarizing Key	2	Socket to Socket	Gold
Samtec Inc. FFSD-20-D-04.00-01-N-D02-M	Gray Ribbon	IDC	Unshielded	0.333 ft	0.025 in	40	10 Ąin	0.05 in	Polarizing Key Reverse Wiring	2	Socket to Socket	Gold	3 Pin
Samtec Inc. FFSD-20-D-25.00-01-N-D02-R	Gray Ribbon	IDC	Unshielded	2.08 ft	0.025 in	40	10 Ąin	0.05 in	Polarizing Key	2	Socket to Socket	Gold	3 Pin
Samtec Inc. FFSD-20-D-03.00-01-N-RW-R	Gray Ribbon	IDC	Unshielded	3 "	0.025 in	40	10 Ąin	0.05 in	Polarizing Key Reverse Wiring	2	Reversed Socket to Socket	Gold
Samtec Inc. FFSD-20-D-63.00-01-N	Gray Ribbon	IDC	Unshielded	63 in	0.025 in	40	10 Ąin	0.05 in	Polarizing Key	2	Socket to Socket	Gold
Samtec Inc. FFSD-20-D-06.00-01-N-D02-R	Gray Ribbon	IDC	Unshielded	0.5 ft	0.025 in	40	10 Ąin	0.05 in	Polarizing Key Reverse Wiring	2	Socket to Socket	Gold	3 Pin
