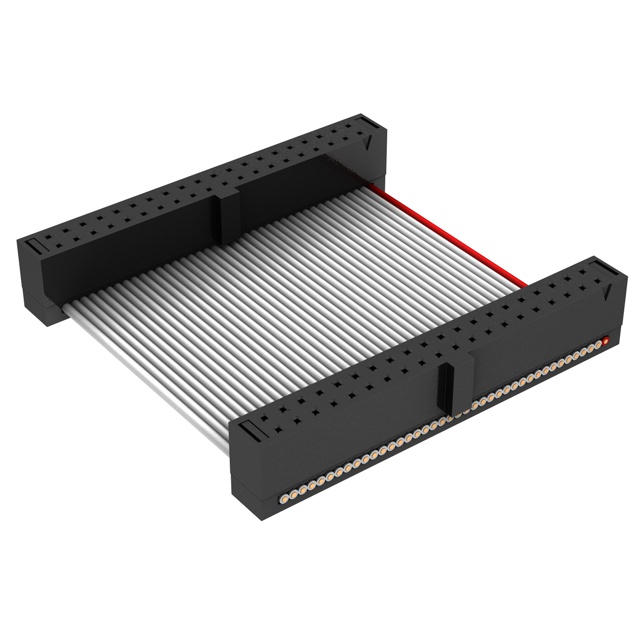

FFSD-20-D-02.16-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-20-D-02.16-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-20-D-02.16-01-N

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length [x]	2.16 in
Length [x]	2.16 in
Length [x]	54.86 mm
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-20 Series

...

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Pitch - Cable [x]	Pitch - Cable	Pitch - Connector	Pitch - Connector	Cable Termination	Length	Length	Length	Number of Rows	Shielding	Features	Length [x]	Length [x]	Length [x]	Length
Samtec Inc. FFSD-20-D-06.80-01-N	Socket to Socket	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	172.72 mm	0.567 ft	6.8 in	2	Unshielded	Polarizing Key
Samtec Inc. FFSD-20-D-02.16-01-N	Socket to Socket	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC				2	Unshielded	Polarizing Key	2.16 in	2.16 in	54.86 mm
Samtec Inc. FFSD-20-D-22.44-01-N	Socket to Socket	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	569.98 mm	22.44 in		2	Unshielded	Polarizing Key
Samtec Inc. FFSD-20-S-10.00-01-N-RW	Socket to Cable	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	254 mm	0.833 ft	10 in	2	Unshielded	Polarizing Key Reverse Wiring
Samtec Inc. FFSD-20-D-04.30-01-N	Socket to Socket	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	109.22 mm		4.3 "	2	Unshielded	Polarizing Key		0.358 ft
Samtec Inc. FFSD-20-D-04.00-01-N-D02-M	Socket to Socket (3)	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC				2	Unshielded	Polarizing Key Reverse Wiring	4 "	0.333 ft	101.6 mm
Samtec Inc. FFSD-20-D-25.00-01-N-D02-R	Socket to Socket (3)	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	635 mm	2.08 ft		2	Unshielded	Polarizing Key
Samtec Inc. FFSD-20-D-03.00-01-N-RW-R	Socket to Socket Reversed	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	76.2 mm	0.25 ft	3 "	2	Unshielded	Polarizing Key Reverse Wiring
Samtec Inc. FFSD-20-D-63.00-01-N	Socket to Socket	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	1.6 m	5.25 ft		2	Unshielded	Polarizing Key
Samtec Inc. FFSD-20-D-06.00-01-N-D02-R	Socket to Socket (3)	10 Áin	0.25 Ám	40	Gold	0.025 in	0.64 mm	0.05 in	1.27 mm	IDC	152.4 mm		6 "	2	Unshielded	Polarizing Key Reverse Wiring				0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.06

Description

General part information

FFSD-20 Series

40 Position Cable Assembly Rectangular Socket to Socket 0.180' (54.86mm, 2.16")
