| Adapter Series | - | N to N, UHF to UHF |
| Adapter Type | - | Jack to Jack, Plug to Jack |
| Body Finish | Nickel | Gold, Nickel, White Bronze |
| Body Material | Brass | Brass, Zinc Die Cast, Zinc Alloy |
| Cable Group | - | 302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393, Semi Rigid, RG-405, 58B, 55B, 58, 58A, RG-55, 58C, 142, 142B, 55A, 141A, 400, 141, 223, 9907, LMR-195, 303, Belden B7806A, RG-58 |
| Cable Group | - | 0.085 in |
| Cable Group | - | 0.086 in |
| Center Contact Material | Brass | Brass, Beryllium Copper, Phosphor Bronze |
| Center Contact Plating | Silver | Gold, Silver, Nickel |
| Center Gender | - | Female to Female |

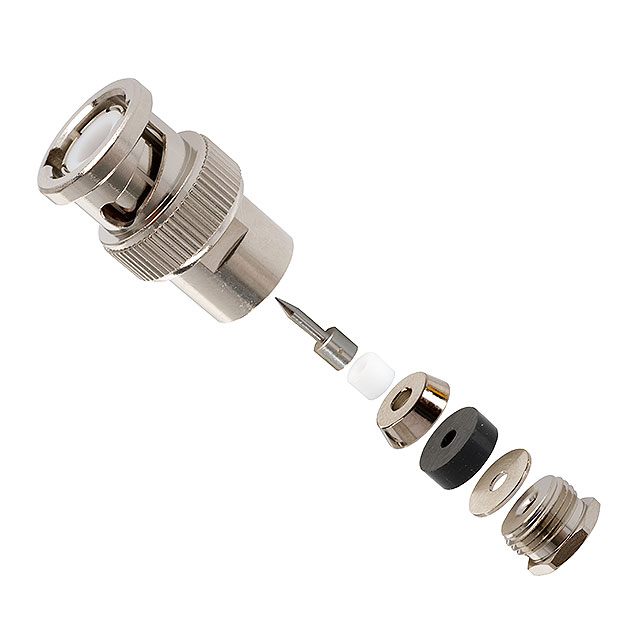

| Connector Style | BNC | SMB, N Type, BNC, 2.2/5, UHF, Mini |
| Connector Type | Male Pin, Plug | Male Pin, Receptacle, Plug, Female Socket, Jack |
| Contact Termination | Solder | Solder Cup, Solder, Crimp |
| Conversion Type | - | Same Series |
| Convert From (Adapter End) | - | N Jack, Female Socket, N Plug, Male Pin, UHF Plug, Male Pin |
| Convert To (Adapter End) | - | Female Socket, N Jack, UHF Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT), Polyester, Polystyrene (PS), Phenol Formaldehyde (Phenolic) |
| Fastening Type | Bayonet Lock | Snap-On, Bayonet Lock |
| Features | - | PL-259 |
| Frequency - Max [Max] | 4 GHz | 2.5 - 6000 MHz |
| Housing Color | Silver | Gold, Silver, White |
| Impedance | 50 Ohms | 50 Ohms |
| Impedance | - | Non-Constant |
| Includes | - | 1 Nut, 1 Connector, 1 Lockwasher, 1 Contact, 1 Washer, 1 Clamp, 2 Insulators, 1 Braid Clamp, 1 Gasket, 1 End Cap, 1 Insulator, 1 Ferrule, Clamp, 1 Braid |
| Ingress Protection | Weatherproof | Weatherproof, IP67 - Dust Tight, Waterproof |
| Insertion Loss | 0.2 dB | 0.15 - 0.2 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut, Flange, Bulkhead - Rear Side Nut, Bulkhead |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 85 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -55 ░C |
| Shield Termination | Clamp | Solder, Clamp, Crimp |
| Style | - | Straight, Right Angle |
| Voltage Rating | 500 V | 335 - 1500 V |
