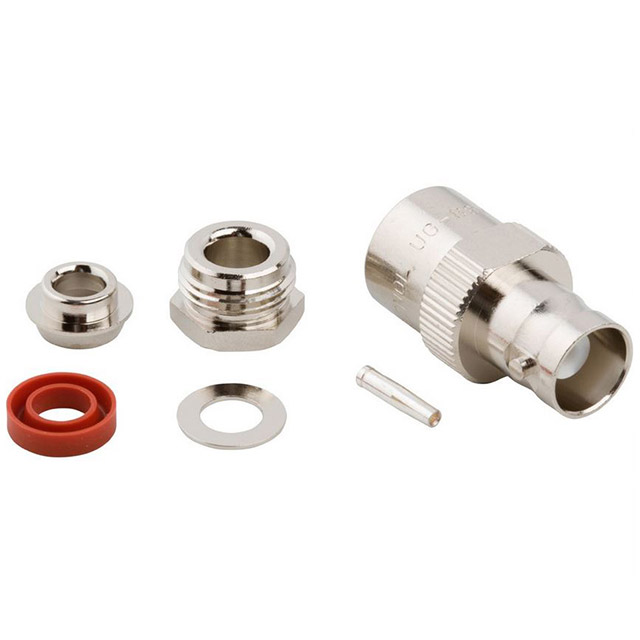

CONN BNC JACK STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
031-5
ActiveAMPHENOL RF
CONN BNC JACK STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 031-5 | - Series |
|---|---|---|
| Adapter Series | - | N to N, UHF to UHF |
| Adapter Type | - | Jack to Jack, Plug to Jack |
| Body Finish | Nickel | Gold, Nickel, White Bronze |
| Body Material | Brass | Brass, Zinc Die Cast, Zinc Alloy |
| Cable Group | 58B, 55B, 58, 58A, RG-55, 58C, 142, 142B, 55A, 141A, 400, 141, 223 | 302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393, Semi Rigid, RG-405, 58B, 55B, 58, 58A, RG-55, 58C, 142, 142B, 55A, 141A, 400, 141, 223, 9907, LMR-195, 303, Belden B7806A, RG-58 |
| Cable Group | - | 0.085 in |
| Cable Group | - | 0.086 in |
| Center Contact Material | Beryllium Copper | Brass, Beryllium Copper, Phosphor Bronze |
| Center Contact Plating | Silver | Gold, Silver, Nickel |
| Center Gender | - | Female to Female |
| Connector Style | BNC | SMB, N Type, BNC, 2.2/5, UHF, Mini |
| Connector Type | Female Socket, Jack | Male Pin, Receptacle, Plug, Female Socket, Jack |
| Contact Termination | Solder, Crimp | Solder Cup, Solder, Crimp |
| Conversion Type | - | Same Series |
| Convert From (Adapter End) | - | N Jack, Female Socket, N Plug, Male Pin, UHF Plug, Male Pin |
| Convert To (Adapter End) | - | Female Socket, N Jack, UHF Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT), Polyester, Polystyrene (PS), Phenol Formaldehyde (Phenolic) |
| Fastening Type | Bayonet Lock | Snap-On, Bayonet Lock |
| Features | - | PL-259 |
| Frequency - Max [Max] | 4 GHz | 2.5 - 6000 MHz |
| Housing Color | Silver | Gold, Silver, White |
| Impedance | 50 Ohms | 50 Ohms |
| Impedance | - | Non-Constant |
| Includes | 1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp | 1 Nut, 1 Connector, 1 Lockwasher, 1 Contact, 1 Washer, 1 Clamp, 2 Insulators, 1 Braid Clamp, 1 Gasket, 1 End Cap, 1 Insulator, 1 Ferrule, Clamp, 1 Braid |
| Ingress Protection | Weatherproof | Weatherproof, IP67 - Dust Tight, Waterproof |
| Insertion Loss | 0.2 dB | 0.15 - 0.2 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut, Flange, Bulkhead - Rear Side Nut, Bulkhead |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 85 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -55 ░C |
| Shield Termination | Clamp | Solder, Clamp, Crimp |
| Style | - | Straight, Right Angle |
| Voltage Rating | 500 V | 335 - 1500 V |
- Series
CONN SMB RCPT STR 50 OHM SOLDER
| Part | Center Contact Plating | Connector Type | Fastening Type | Body Finish | Frequency - Max [Max] | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Includes | Dielectric Material | Impedance | Center Contact Material | Connector Style | Contact Termination | Shield Termination | Housing Color | Mounting Feature | Voltage Rating | Insertion Loss | Cable Group | Mounting Type | Ingress Protection | Cable Group [Min] | Cable Group [Max] | Adapter Series | Center Gender | Adapter Type | Style | Convert To (Adapter End) | Convert From (Adapter End) | Conversion Type | Impedance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL RF 027-3 | Gold | Male Pin, Receptacle | Snap-On | Gold | 6000 MHz | 1 | -65 ░C | 165 °C | Brass | 500 | 1 Connector, 1 Lockwasher, 1 Nut | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | SMB | Solder Cup | Solder | Gold | Bulkhead - Front Side Nut | ||||||||||||||||
AMPHENOL RF 82-312 | Silver | Male Pin, Plug | Nickel | 11 GHz | 1 | -55 °C | 85 °C | Brass | 500 | 1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer, 2 Insulators | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | N Type | Solder | Clamp | Silver | 1500 V | 0.15 dB | 213, 214, 225, 302, 393, 87, 8A, 9, 9A, 9B, RG-8 | Free Hanging (In-Line) | Weatherproof | |||||||||||||
AMPHENOL RF 15875 | Silver | Male Pin, Plug | Bayonet Lock | Nickel | 4 GHz | 1 | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | BNC | Solder | Clamp | Silver | 500 V | 0.2 dB | Free Hanging (In-Line) | Weatherproof | ||||||||||||||
AMPHENOL RF 225-107P-52A | Silver | Male Pin, Plug | White Bronze | 20 GHz | 1 | -65 ░C | 165 °C | Brass | 1 Connector, 1 End Cap, 1 Insulator | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | 2.2/5 | Solder | Solder | White | RG-405, Semi Rigid | Free Hanging (In-Line), Right Angle | 0.085 in | 0.086 in | |||||||||||||||
AMPHENOL RF 82-101 | Silver | Nickel | 11 GHz | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Free Hanging (In-Line) | N to N | Female to Female | Jack to Jack | Straight | Female Socket, N Jack | Female Socket, N Jack | Same Series | ||||||||||||||||||
AMPHENOL RF 82-64 | Silver | Nickel | 11 GHz | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Free Hanging (In-Line), Right Angle | IP67 - Dust Tight, Waterproof | N to N | Plug to Jack | Right Angle | Female Socket, N Jack | N Plug, Male Pin | Same Series | |||||||||||||||||
AMPHENOL RF 83-1R | Silver | Female Socket, Receptacle | Nickel | 300 MHz | 1 | Zinc Die Cast | Polybutylene Terephthalate (PBT), Polyester | Brass | UHF | Solder Cup | Solder | Silver | Flange | 500 V | Non-Constant | ||||||||||||||||||||
AMPHENOL RF 031-5 | Silver | Female Socket, Jack | Bayonet Lock | Nickel | 4 GHz | 1 | -65 ░C | 165 °C | Brass | 500 | 1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | BNC | Crimp, Solder | Clamp | Silver | 500 V | 0.2 dB | 141, 141A, 142, 142B, 223, 400, 55A, 55B, 58, 58A, 58B, 58C, RG-55 | Free Hanging (In-Line) | Weatherproof | ||||||||||||
AMPHENOL RF 81-115N-1000 | Gold | Male Pin, Plug | Nickel | 2.5 GHz | 1 | -55 °C | 85 °C | Brass | 1 Connector, 1 Ferrule | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | Mini, UHF | Crimp, Solder | Crimp | Silver | 335 V | 141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58 | Free Hanging (In-Line) | ||||||||||||||||
AMPHENOL RF 83-1J | Silver | Nickel | 300 MHz | -55 °C | 85 °C | Brass | Polystyrene (PS) | Brass | Free Hanging (In-Line) | UHF to UHF | Female to Female | Jack to Jack | Straight | Female Socket, UHF Jack | Same Series | Non-Constant |
