HW-05-07-TM-S-240-110

Active

Samtec Inc.

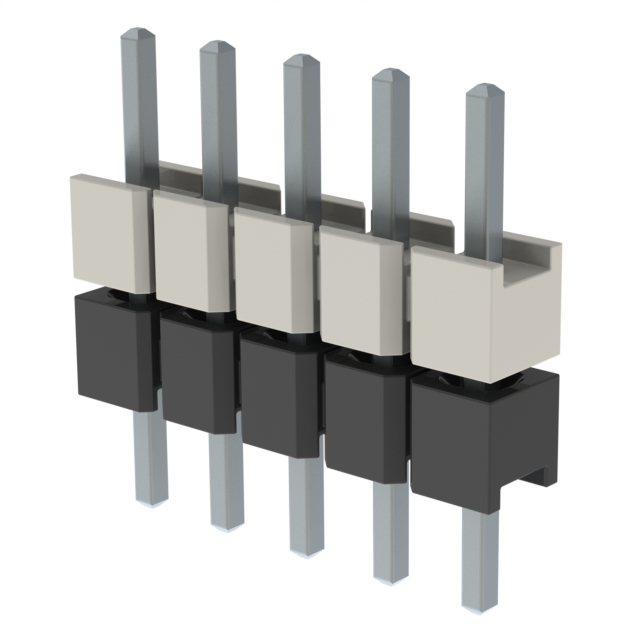

CONN HDR 5POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 5POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Row Spacing [x]	Row Spacing	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Pitch [x]	Pitch [x]	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail	Length - Tail [x]	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail	Length - Stack Height [x]	Length - Stack Height [x]
Samtec Inc. HW-05-07-T-D-260-060	10	0.1 in	2.54 mm	Solder	2.794 mm	0.11 in	Black	2.54 mm	0.1 in	2	10.922 mm	0.43 in	Through Hole	0.26 in	6.604 mm	1.524 mm	0.06 in	Tin
Samtec Inc. HW-05-07-G-S-216-066				Solder	3.759 mm	0.148 in	Black	2.54 mm	0.1 in	1	10.922 mm	0.43 in	Through Hole	0.216 in	5.486 mm	1.676 mm		Gold	0.25 Ám	10 Áin	0.066 in
Samtec Inc. HW-05-07-F-S-200-117				Solder	2.87 mm	0.113 in	Black	2.54 mm	0.1 in	1	10.922 mm	0.43 in	Through Hole			2.972 mm		Gold	0.076 Ám	3 Áin	0.117 "
Samtec Inc. HW-05-07-TM-S-240-110				Solder			Black	2.54 mm	0.1 in	1	10.922 mm	0.43 in	Through Hole			2.8 mm		Tin			0.11 in	6.096 mm	0.24 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.69

General part information

5 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
