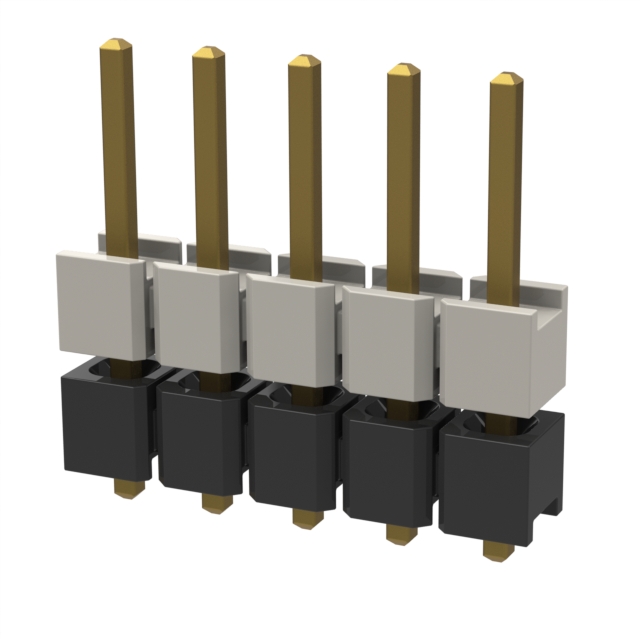

HW-05-07-G-S-216-066

Active

Samtec Inc.

CONN HDR 5POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 5POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	HW-05-07-G-S-216-066

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	10.922 mm
Length - Overall Pin [x]	0.43 in
Length - Post (Mating) [x]	3.759 mm
Length - Post (Mating) [x]	0.148 in
Length - Stack Height [z]	5.486 mm
Length - Stack Height [z]	0.216 in
Length - Tail	1.676 mm
Length - Tail	0.066 in
Mounting Type	Through Hole
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Number of Positions	Row Spacing [x]	Row Spacing	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Pitch [x]	Pitch [x]	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail	Length - Tail [x]	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail	Length - Stack Height [x]	Length - Stack Height [x]
Samtec Inc. HW-05-07-T-D-260-060	10	0.1 in	2.54 mm	Solder	2.794 mm	0.11 in	Black	2.54 mm	0.1 in	2	10.922 mm	0.43 in	Through Hole	0.26 in	6.604 mm	1.524 mm	0.06 in	Tin
Samtec Inc. HW-05-07-G-S-216-066				Solder	3.759 mm	0.148 in	Black	2.54 mm	0.1 in	1	10.922 mm	0.43 in	Through Hole	0.216 in	5.486 mm	1.676 mm		Gold	0.25 Ám	10 Áin	0.066 in
Samtec Inc. HW-05-07-F-S-200-117				Solder	2.87 mm	0.113 in	Black	2.54 mm	0.1 in	1	10.922 mm	0.43 in	Through Hole			2.972 mm		Gold	0.076 Ám	3 Áin	0.117 "
Samtec Inc. HW-05-07-TM-S-240-110				Solder			Black	2.54 mm	0.1 in	1	10.922 mm	0.43 in	Through Hole			2.8 mm		Tin			0.11 in	6.096 mm	0.24 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.27
