TMS1T5B2M6RE

Active

TE Connectivity Raychem Cable Protection

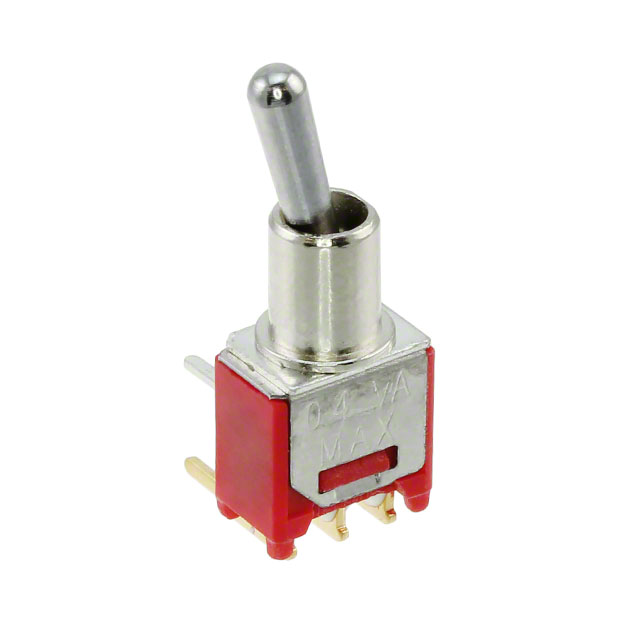

SWITCH TOGGLE SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Features	Voltage Rating - AC	Bushing Thread	Actuator Type	Termination Style	Actuator Length [x]	Switch Function	Current Rating (Amps)	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Mounting Type
TE Connectivity Raychem Cable Protection TMS1T4B5M2RE	0.25 in	20 V	Process Sealed	20 V	1/4-40	Standard Round	PC Pin	10.41 mm	On-On	0.4 VA	SPDT	-30 ░C	85 °C	Non-Illuminated
TE Connectivity Raychem Cable Protection TMS1T1B1M1QE	4.95 mm	28 V	Process Sealed	120 V	10-48	Standard Round	Solder Lug	9.4 mm	On-On	3 A	SPDT	-30 ░C	85 °C	Non-Illuminated
TE Connectivity Raychem Cable Protection TMS1T5B2M7RE		20 V	Process Sealed	20 V	Unthreaded	Standard Round	PC Pin	7.48 mm	On-On	0.4 VA	SPDT	-30 ░C	85 °C	Non-Illuminated	Right Angle Through Hole Vertical
TE Connectivity Raychem Cable Protection TMS1T5B2M6RE		20 V	Process Sealed	20 V	Unthreaded	Standard Round	PC Pin	7.48 mm	On-On	0.4 VA	SPDT	-30 ░C	85 °C	Non-Illuminated	Through Hole Right Angle
TE Connectivity Raychem Cable Protection TMS1T3B1M5RE	4.95 mm	20 V	Process Sealed	20 V	10-48	Standard Round	Wire Wrap		On-On	0.4 VA	SPDT	-30 ░C	85 °C	Non-Illuminated
TE Connectivity Raychem Cable Protection TMS1T3B1M1QE	4.95 mm	28 V	Process Sealed	120 V	10-48	Standard Round	Solder Lug		On-On	3 A	SPDT	-30 ░C	85 °C	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle
