TMS1T1B1M1QE

Active

TE Connectivity Raychem Cable Protection

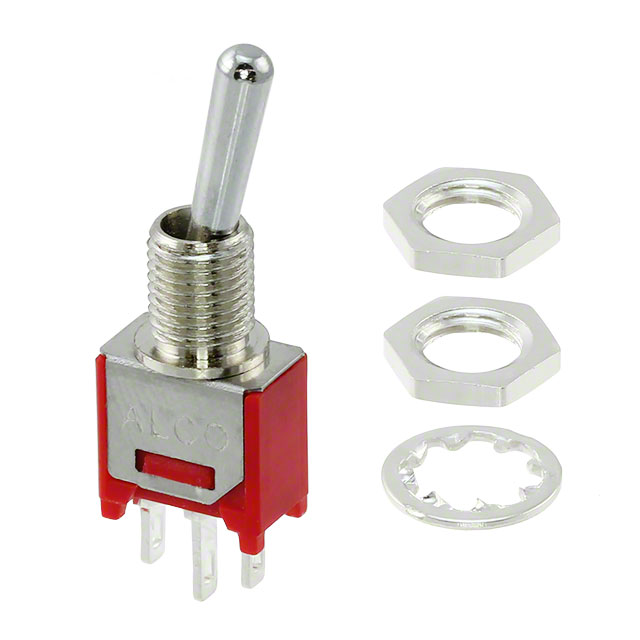

SWITCH TOGGLE SPDT 3A 120V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE SPDT 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	TMS1T1B1M1QE

Actuator Length [x]	9.4 mm
Actuator Type	Standard Round
Bushing Thread	10-48
Circuit	SPDT
Current Rating (Amps)	3 A
Features	Process Sealed
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Features	Voltage Rating - AC	Bushing Thread	Actuator Type	Termination Style	Actuator Length [x]	Switch Function	Current Rating (Amps)	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Mounting Type
TE Connectivity Raychem Cable Protection TMS1T4B5M2RE	0.25 in	20 V	Process Sealed	20 V	1/4-40	Standard Round	PC Pin	10.41 mm	On-On	0.4 VA	SPDT	-30 ░C	85 °C	Non-Illuminated
TE Connectivity Raychem Cable Protection TMS1T1B1M1QE	4.95 mm	28 V	Process Sealed	120 V	10-48	Standard Round	Solder Lug	9.4 mm	On-On	3 A	SPDT	-30 ░C	85 °C	Non-Illuminated
TE Connectivity Raychem Cable Protection TMS1T5B2M7RE		20 V	Process Sealed	20 V	Unthreaded	Standard Round	PC Pin	7.48 mm	On-On	0.4 VA	SPDT	-30 ░C	85 °C	Non-Illuminated	Right Angle Through Hole Vertical
TE Connectivity Raychem Cable Protection TMS1T5B2M6RE		20 V	Process Sealed	20 V	Unthreaded	Standard Round	PC Pin	7.48 mm	On-On	0.4 VA	SPDT	-30 ░C	85 °C	Non-Illuminated	Through Hole Right Angle
TE Connectivity Raychem Cable Protection TMS1T3B1M5RE	4.95 mm	20 V	Process Sealed	20 V	10-48	Standard Round	Wire Wrap		On-On	0.4 VA	SPDT	-30 ░C	85 °C	Non-Illuminated
TE Connectivity Raychem Cable Protection TMS1T3B1M1QE	4.95 mm	28 V	Process Sealed	120 V	10-48	Standard Round	Solder Lug		On-On	3 A	SPDT	-30 ░C	85 °C	Non-Illuminated
