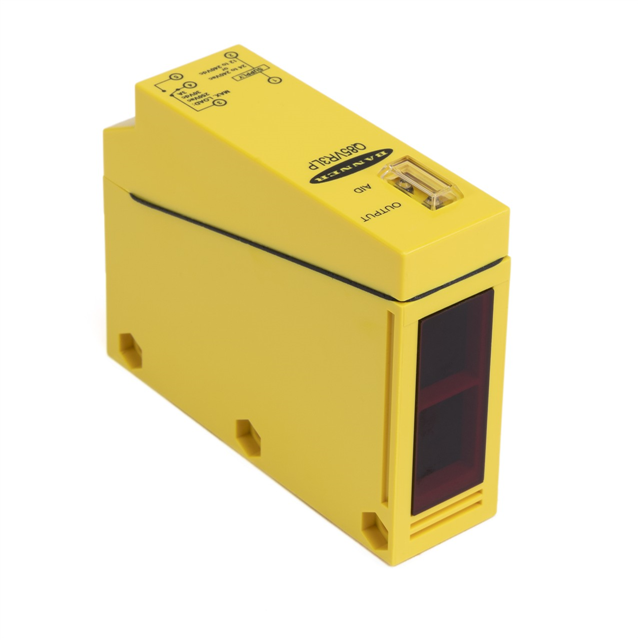

Q85VR3LP

Active

BANNER ENGINEERING

PHOTO SEN RETRO 80MM-4.6M SPDT

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SEN RETRO 80MM-4.6M SPDT

Technical Specifications

Parameters and characteristics for this part

Specification	Q85VR3LP

Ingress Protection	NEMA 2, NEMA 3S, NEMA 4X, NEMA 6, NEMA 3, NEMA 6P, NEMA 4, NEMA 1, NEMA 12, IEC IP67, NEMA 13
Light Source	Red LED
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	SPDT
Response Time	20 ms
Sensing Distance	80 mm
Sensing Distance	3.15 in
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	240 VDC, 240 VAC
Voltage - Supply [Min]	24 VAC, 12 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Output Configuration	Ingress Protection	Light Source	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance	Sensing Distance
BANNER ENGINEERING Q85VR3D-T9-B	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Diffuse	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Infrared
BANNER ENGINEERING Q85VR3LP-T9	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Polarized Retroreflective	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Red LED	181.1 in	4600 mm	80 mm	3.15 "
BANNER ENGINEERING Q85VR3LP	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Polarized Retroreflective	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Red LED					80 mm	3.15 in
BANNER ENGINEERING Q85VR3LP-T9-B	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Polarized Retroreflective	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Red					4.6 m	181.102 in
BANNER ENGINEERING Q85VR3DL-T9	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Diffuse	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Red LED					1 m	39.37 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective, Polarized Optical Sensor 3.150" (80mm) SPDT
