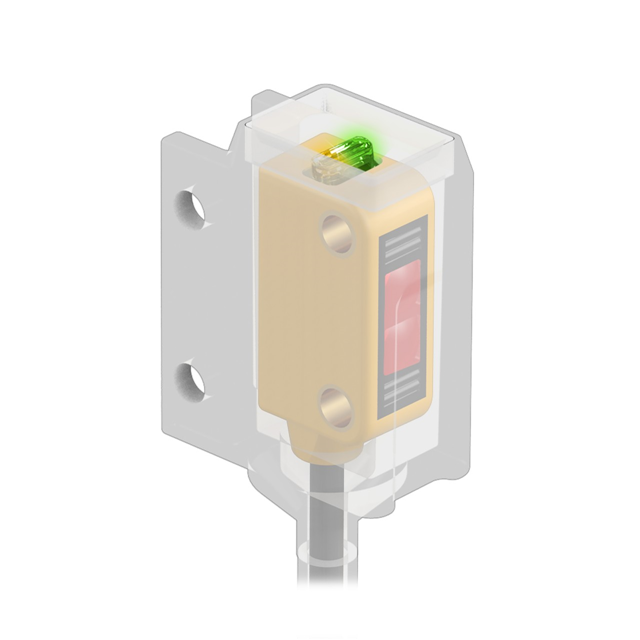

Q85VR3LP-T9-B

Active

BANNER ENGINEERING

Q85 SERIES: POLARIZED RETRO W/TIMING

Search across all available documentation for this part.

Active

BANNER ENGINEERING

Q85 SERIES: POLARIZED RETRO W/TIMING

Technical Specifications

Parameters and characteristics for this part

Specification	Q85VR3LP-T9-B

Ingress Protection	NEMA 2, NEMA 3S, NEMA 4X, NEMA 6, NEMA 3, NEMA 6P, NEMA 4, NEMA 1, NEMA 12, IEC IP67, NEMA 13
Light Source	Red
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	SPDT
Response Time	20 ms
Sensing Distance	4.6 m
Sensing Distance	181.102 in
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	240 VDC, 240 VAC
Voltage - Supply [Min]	12 V, 24 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Output Configuration	Ingress Protection	Light Source	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance	Sensing Distance
BANNER ENGINEERING Q85VR3D-T9-B	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Diffuse	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Infrared
BANNER ENGINEERING Q85VR3LP-T9	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Polarized Retroreflective	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Red LED	181.1 in	4600 mm	80 mm	3.15 "
BANNER ENGINEERING Q85VR3LP	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Polarized Retroreflective	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Red LED					80 mm	3.15 in
BANNER ENGINEERING Q85VR3LP-T9-B	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Polarized Retroreflective	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Red					4.6 m	181.102 in
BANNER ENGINEERING Q85VR3DL-T9	55 °C	-25 °C	20 ms	240 VDC 240 VAC	12 V 24 VAC	Diffuse	SPDT	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	Red LED					1 m	39.37 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 228.00
Newark	Each	1	$ 235.00

General part information

Retroreflective, Polarized Optical Sensor 181.102" (4.6m) SPDT
