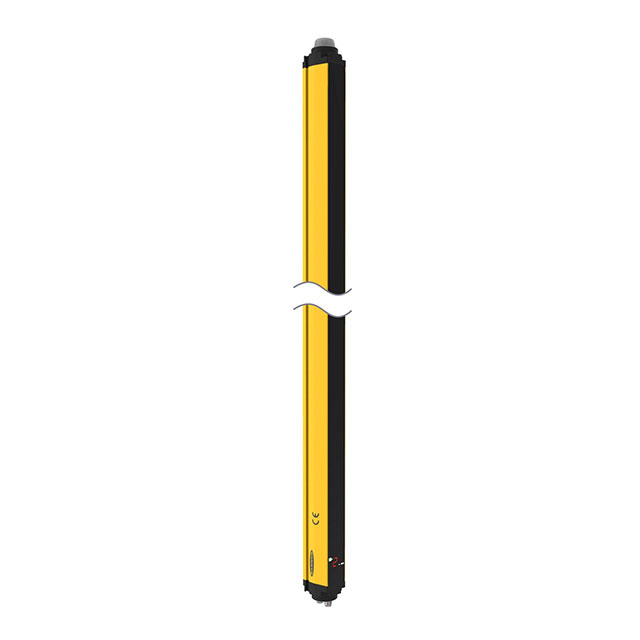

SGSMA4-300Q12

Active

SAFETY LIGHT CURTAINS SGS SAFETY GRID SYSTEM, ACTIVE TRANSCEIVER; BEAMS: 4; RESOLUTION: 300 MM; RANGE: 0.5 TO 6.5 M; 12-PIN M12 QD; 5-PIN M12 QD; AUTO/MANUAL START/RESTART, EDM, INTEGRAL MUTING; MOUNTING HARDWARE ORDERED SEPARATELY

Find alt

Alpha

SGSMA4-300Q12

Active

BANNER ENGINEERING

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

SGSMA4 Series

Light Curtain Muting Function

Technical Specifications

Parameters and characteristics for this part

Specification	SGSMA4-300Q12

Beam Pitch	300 mm
Features	Muting Function
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Number of Beams	4
Operating Range (Max)	6.5 m
Operating Range (Min)	500 mm
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Protective Height	900 mm
Voltage - Supply	24 VDC

SGSMA4 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Features	Ingress Protection IP Rating	Ingress Protection Description	Operating Range (Max)	Operating Range (Min)	Number of Beams	Protective Height	Beam Pitch	Voltage - Supply
BANNER ENGINEERING SGSMA4-300Q12	0 °C	50 °C	Muting Function	IP65	Dust Tight Water Resistant	6.5 m	500 mm	4	900 mm	300 mm	24 VDC
BANNER ENGINEERING SGSMA4-400Q12	0 °C	50 °C	Muting Function	IP65	Dust Tight Water Resistant	8 m	500 mm	4	1.2 m	400 mm	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SGSMA4-300Q12 | Datasheet
