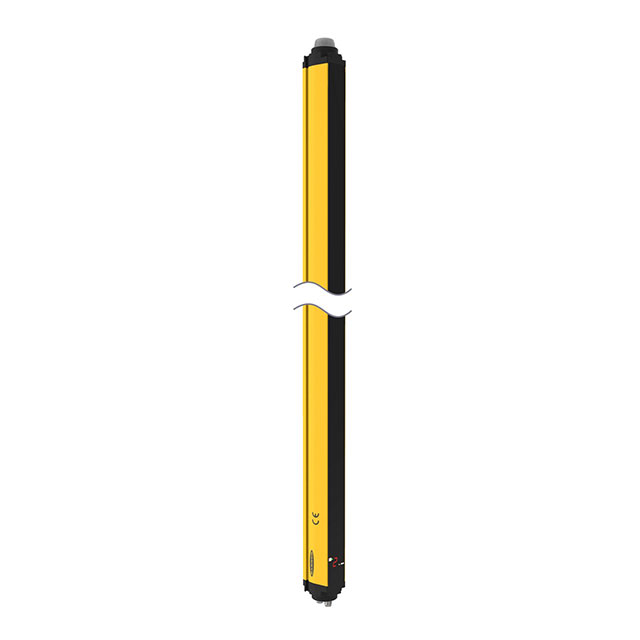

SGSMA4-400Q12

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Technical Specifications

Parameters and characteristics for this part

Specification	SGSMA4-400Q12

Beam Pitch	400 mm
Features	Muting Function
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams [custom]	4
Operating Range [Max]	8 m
Operating Range [Min]	0.5 m
Protective Height	1200 mm
Voltage - Supply	24 VDC

Part	Protective Height	Voltage - Supply	Ingress Protection	Operating Range [Min]	Operating Range [Max]	Beam Pitch	Features	Number of Beams [custom]
BANNER ENGINEERING SGSMA4-300Q12	900 mm	24 VDC	IP65 - Dust Tight Water Resistant	0.5 m	6.5 m	300 mm	Muting Function	4
BANNER ENGINEERING SGSMA4-400Q12	1200 mm	24 VDC	IP65 - Dust Tight Water Resistant	0.5 m	8 m	400 mm	Muting Function	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1311.01
Newark	Each	1	$ 1334.00

General part information

Light Curtain Muting Function

Technical documentation and resources

No documents available
