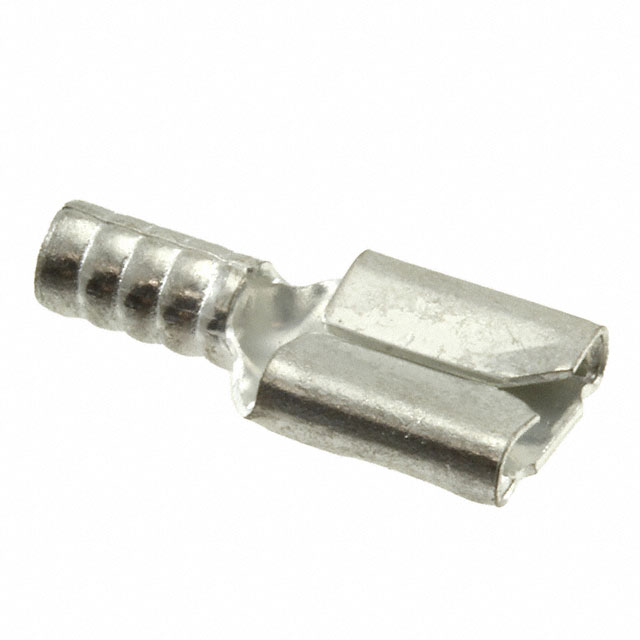

71F-250-32
Active3M (TC)
CONN QC RCPT 18-22AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
71F-250-32
Active3M (TC)
CONN QC RCPT 18-22AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 71F-250-32 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Butted Seam |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.66 in |
| Length - Overall [x] | 16.76 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| 3000 | $ 0.10 | |||
Description
General part information
71F Series
0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
