71F-250-32-NBL

Active

3M (TC)

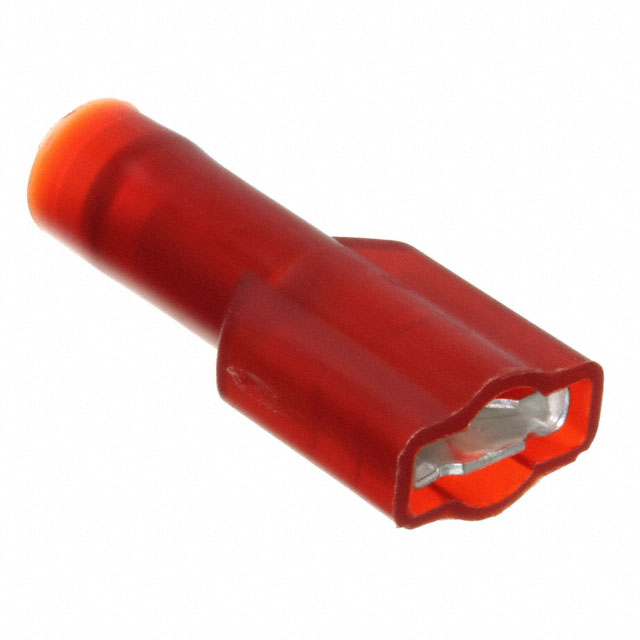

QUICK DISCONNECT TERMINAL 18-22AWG NYLON RED F 22.09MM TIN LOOSE

Search across all available documentation for this part.

Active

3M (TC)

QUICK DISCONNECT TERMINAL 18-22AWG NYLON RED F 22.09MM TIN LOOSE

Technical Specifications

Parameters and characteristics for this part

Specification	71F-250-32-NBL

Color	Red
Gender	Female
Insulation	Fully Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	0.86 "
Length - Overall [x]	21.84 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Length - Overall [x]	Length - Overall [x]	Tab Width	Tab Width	Gender	Mounting Type	Termination	Terminal Type	Insulation	Insulation Diameter	Insulation Diameter [diameter]	Color	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Contact Finish	Features
3M (TC) 71F-250-32-NBL	0.86 "	21.84 mm	6.35 mm	0.25 in	Female	Free Hanging (In-Line)	Crimp	Standard	Fully Insulated	3.68 mm	0.145 "	Red	0.032 in	0.81 mm	22 AWG	17.5 AWG
3M (TC) 71F-250-32	0.66 in	16.76 mm	6.35 mm	0.25 in	Female	Free Hanging (In-Line)	Crimp	Standard	Non-Insulated				0.032 in	0.81 mm	22 AWG	17.5 AWG	Brass	Tin	Butted Seam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
