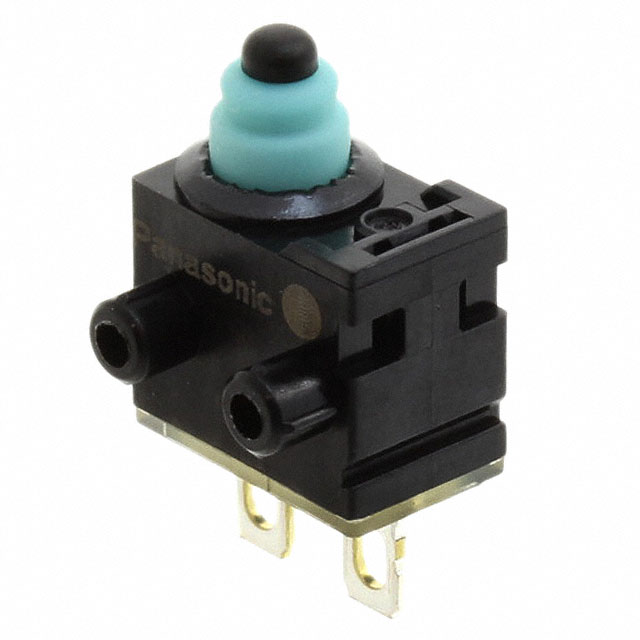

ASQM17420
ActivePanasonic Electric Works
SWITCH SNP ACT SPST-NC 0.05A 16V
Deep-Dive with AI
Search across all available documentation for this part.
ASQM17420
ActivePanasonic Electric Works
SWITCH SNP ACT SPST-NC 0.05A 16V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASQM17420 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NC |
| Current Rating (Amps) | 50 mA |
| Electrical Life | 150000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force | 122 gf |
| Operating Position [x] | 0.28 in |
| Operating Position [x] | 7.1 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.7 mm |
| Overtravel | 0.065 in |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - DC | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.55 | |
| 10 | $ 3.27 | |||
| 25 | $ 3.07 | |||
| 50 | $ 3.00 | |||
| 100 | $ 2.39 | |||
| 300 | $ 2.25 | |||
| 500 | $ 2.11 | |||
| 1000 | $ 1.98 | |||
| 5000 | $ 1.84 | |||
Description
General part information
ASQM17 Series
Switch SPST-NC Chassis Mount
Documents
Technical documentation and resources
No documents available
