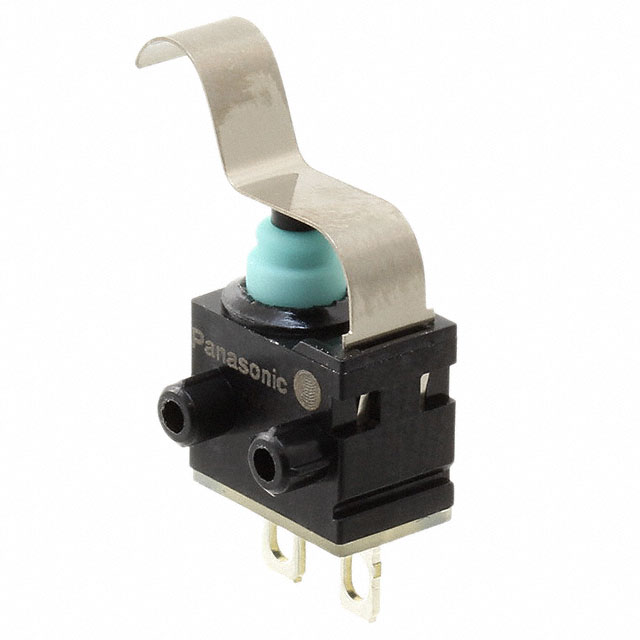

ASQM17428

Active

Panasonic Electric Works

SWITCH SNP ACT SPST-NC 0.05A 16V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNP ACT SPST-NC 0.05A 16V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Ingress Protection	Overtravel	Overtravel	Electrical Life	Operating Force	Actuator Type	Circuit	Voltage Rating - DC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Current Rating (Amps)	Mounting Type	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ASQM17428	On-Mom	IP67 - Dust Tight Waterproof	2.16 mm	0.085 in	150000 Cycles	153 gf	Lever Simulated Roller	SPST-NC	16 V	Solder Lug	85 °C	-40 °C	10.75 mm	0.423 in	50 mA	Chassis Mount
Panasonic Electric Works ASQM17420	On-Mom	IP67 - Dust Tight Waterproof	1.7 mm	0.065 in	150000 Cycles	122 gf	Round (Pin Plunger)	SPST-NC	16 V	Solder Lug	85 °C	-40 °C			50 mA	Chassis Mount	0.28 in	7.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 2.25

General part information

Switch SPST-NC Chassis Mount

Technical documentation and resources

No documents available
