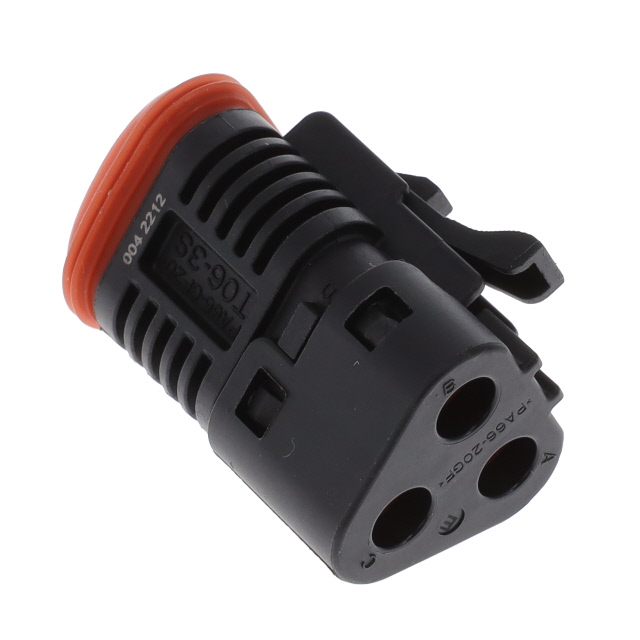

IT06-3S-004
ActiveITT Cannon, LLC
CONN PLUG HSG 3POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IT06-3S-004
ActiveITT Cannon, LLC
CONN PLUG HSG 3POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IT06-3S-004 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | IP69K, IP67, Cap (Cover), Sealed, IP68 |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
IT06-3 Series
| Part | Color | Features | Contact Termination | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Insulation Material | Number of Rows | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Gray | Cap (Cover) IP67 IP68 IP69K Sealed | Crimp | Female Socket | -55 °C | 125 °C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) | 2 | Latch Lock | Plug |
ITT Cannon, LLC | Gray | Crimp | Female Socket | -55 °C | 125 °C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) | 2 | Latch Lock | Plug | |
ITT Cannon, LLC | Black | Cap (Cover) IP67 IP68 IP69K Sealed | Crimp | Female Socket | -55 °C | 125 °C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) | 2 | Latch Lock | Plug |
ITT Cannon, LLC | Black | Crimp | Female Socket | -55 °C | 125 °C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) | 2 | Latch Lock | Plug | |
ITT Cannon, LLC | Gray | Crimp | Female Socket | -55 °C | 125 °C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) | 2 | Latch Lock | Plug | |
ITT Cannon, LLC | Black | Crimp | Female Socket | -55 °C | 125 °C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) | 2 | Latch Lock | Plug | |
ITT Cannon, LLC | Black | Cap (Cover) IP67 IP68 IP69K Sealed | Crimp | Female Socket | -55 °C | 125 °C | Free Hanging (In-Line) | Glass Filled Nylon Polyamide (PA) | 2 | Latch Lock | Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.17 | |
| 10 | $ 1.02 | |||
| 25 | $ 0.98 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.82 | |||
| 500 | $ 0.76 | |||
Description
General part information
IT06-3 Series
3 Rectangular Connectors - Housings Plug Black
