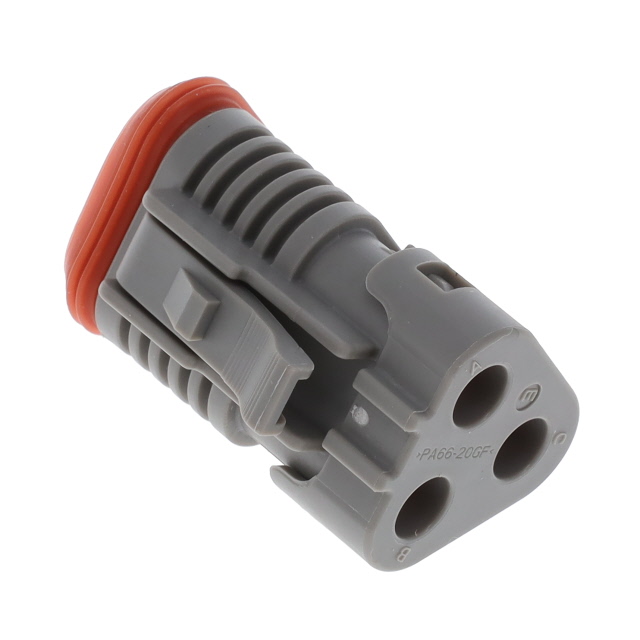

IT06-3S-000

Active

ITT Cannon, LLC

CONN PLUG HSG 3POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG HSG 3POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT06-3S-000

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP69K, IP67, Cap (Cover), Sealed, IP68
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Color	Features	Contact Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Number of Rows	Fastening Type	Connector Type
ITT Cannon, LLC IT06-3S-000	Gray	Cap (Cover) IP67 IP68 IP69K Sealed	Crimp	Female Socket	-55 °C	125 °C	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	2	Latch Lock	Plug
ITT Cannon, LLC IT06-3S-002	Gray		Crimp	Female Socket	-55 °C	125 °C	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	2	Latch Lock	Plug
ITT Cannon, LLC IT06-3S-004	Black	Cap (Cover) IP67 IP68 IP69K Sealed	Crimp	Female Socket	-55 °C	125 °C	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	2	Latch Lock	Plug
ITT Cannon, LLC IT06-3S-006	Black		Crimp	Female Socket	-55 °C	125 °C	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	2	Latch Lock	Plug
ITT Cannon, LLC IT06-3S-002-N	Gray		Crimp	Female Socket	-55 °C	125 °C	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	2	Latch Lock	Plug
ITT Cannon, LLC IT06-3S-006-N	Black		Crimp	Female Socket	-55 °C	125 °C	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	2	Latch Lock	Plug
ITT Cannon, LLC IT06-3S-004-N	Black	Cap (Cover) IP67 IP68 IP69K Sealed	Crimp	Female Socket	-55 °C	125 °C	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	2	Latch Lock	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug Gray
