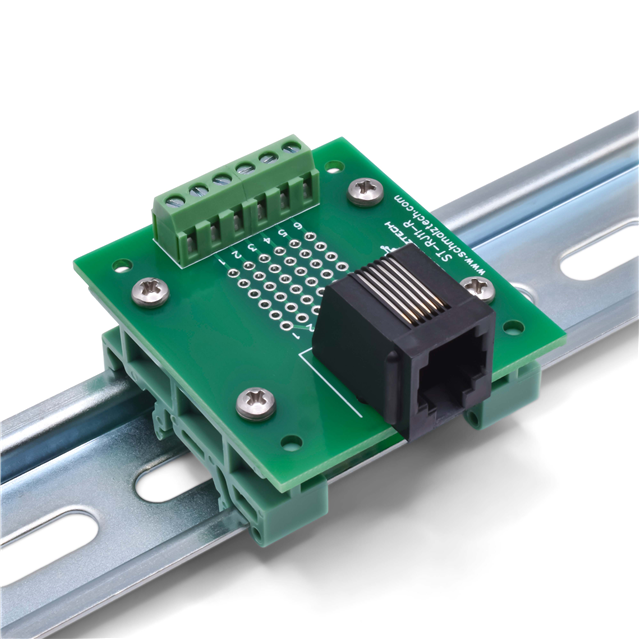

RJ11 BREAKOUT BOARD W/ DIN CLIPS

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ11 BREAKOUT BOARD W/ DIN CLIPS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ST-RJ11-R-DIN	ST-RJ11 Series

Board Thickness	1.6 mm	1.6 mm
Board Thickness	0.063 in	0.063 in
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Number of Positions	6	6
Package Accepted	RJ11	RJ11
Pitch	-	2.54 mm
Pitch	-	0.1 in
Proto Board Type	Connector to Terminal Block	Connector to Terminal Block, Connector to Plated Through Hole
Size / Dimension [x]	2 in	1.2 - 2 "
Size / Dimension [x]	50.8 mm	30.48 - 50.8 mm
Size / Dimension [y]	1.8 in	1.5 - 1.8 in
Size / Dimension [y]	45.72 mm	38.1 - 45.72 mm

RJ11 MINI BREAKOUT BOARD

Part	Board Thickness	Board Thickness	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions	Proto Board Type	Package Accepted	Pitch [x]	Pitch [x]
SchmalzTech, LLC ST-RJ11-R-MIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.5 in	38.1 mm	1.2 "	30.48 mm	6	Connector to Terminal Block	RJ11
SchmalzTech, LLC ST-RJ11-R-FT	1.6 mm	0.063 in	FR4 Epoxy Glass	1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Terminal Block	RJ11
SchmalzTech, LLC ST-RJ11-PASS-R-DIN				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-PASS-R-FT				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-R-DIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Terminal Block	RJ11
