ST-RJ11-R-FT

Active

SchmalzTech, LLC

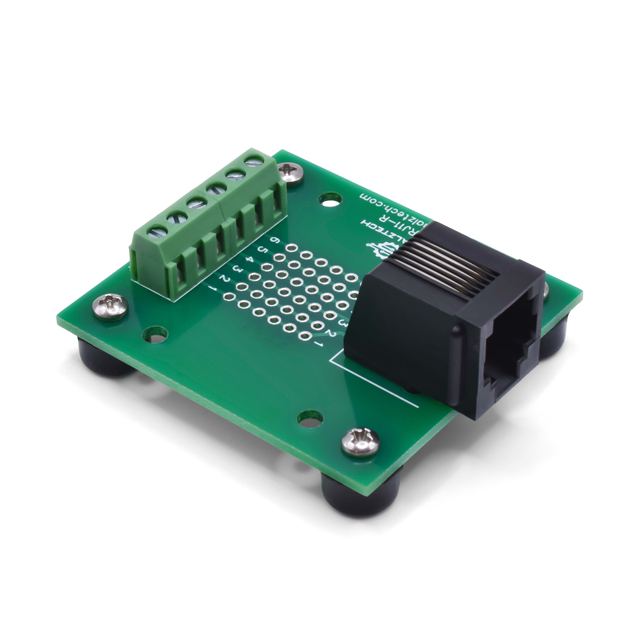

RJ11 BREAKOUT BOARD WITH FEET

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ11 BREAKOUT BOARD WITH FEET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ST-RJ11-R-FT	ST-RJ11 Series

Board Thickness	1.6 mm	1.6 mm
Board Thickness	0.063 in	0.063 in
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Number of Positions	6	6
Package Accepted	RJ11	RJ11
Pitch	-	2.54 mm
Pitch	-	0.1 in
Proto Board Type	Connector to Terminal Block	Connector to Terminal Block, Connector to Plated Through Hole
Size / Dimension [x]	2 in	1.2 - 2 "
Size / Dimension [x]	50.8 mm	30.48 - 50.8 mm
Size / Dimension [y]	1.8 in	1.5 - 1.8 in
Size / Dimension [y]	45.72 mm	38.1 - 45.72 mm

RJ11 MINI BREAKOUT BOARD

Part	Board Thickness	Board Thickness	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions	Proto Board Type	Package Accepted	Pitch [x]	Pitch [x]
SchmalzTech, LLC ST-RJ11-R-MIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.5 in	38.1 mm	1.2 "	30.48 mm	6	Connector to Terminal Block	RJ11
SchmalzTech, LLC ST-RJ11-R-FT	1.6 mm	0.063 in	FR4 Epoxy Glass	1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Terminal Block	RJ11
SchmalzTech, LLC ST-RJ11-PASS-R-DIN				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-PASS-R-FT				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-R-DIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Terminal Block	RJ11
