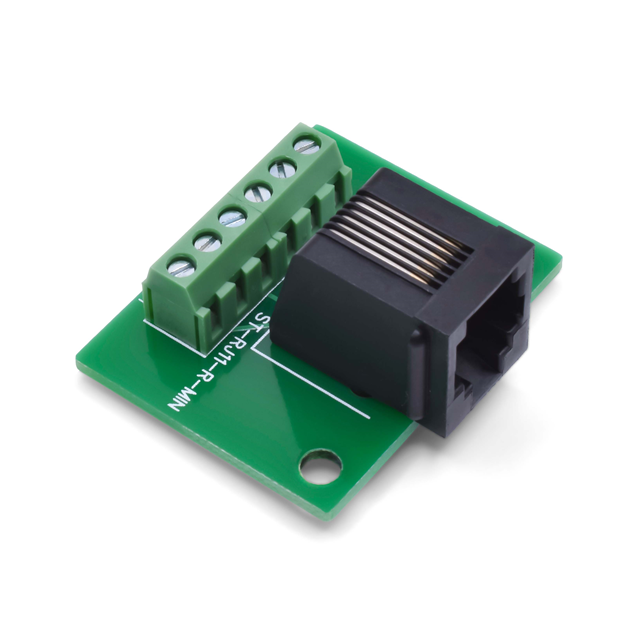

RJ11 MINI BREAKOUT BOARD

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ11 MINI BREAKOUT BOARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RJ11 MINI BREAKOUT BOARD

Technical documentation and resources

Specification	ST-RJ11-R-MIN	ST-RJ11 Series

Board Thickness	1.6 mm	1.6 mm
Board Thickness	0.063 in	0.063 in
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Number of Positions	6	6
Package Accepted	RJ11	RJ11
Pitch	-	2.54 mm
Pitch	-	0.1 in
Proto Board Type	Connector to Terminal Block	Connector to Terminal Block, Connector to Plated Through Hole
Size / Dimension [x]	1.2 "	1.2 - 2 "
Size / Dimension [x]	30.48 mm	30.48 - 50.8 mm
Size / Dimension [y]	1.5 in	1.5 - 1.8 in
Size / Dimension [y]	38.1 mm	38.1 - 45.72 mm

Part	Board Thickness	Board Thickness	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions	Proto Board Type	Package Accepted	Pitch [x]	Pitch [x]
SchmalzTech, LLC ST-RJ11-R-MIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.5 in	38.1 mm	1.2 "	30.48 mm	6	Connector to Terminal Block	RJ11
SchmalzTech, LLC ST-RJ11-R-FT	1.6 mm	0.063 in	FR4 Epoxy Glass	1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Terminal Block	RJ11
SchmalzTech, LLC ST-RJ11-PASS-R-DIN				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-PASS-R-FT				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-R-DIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Terminal Block	RJ11
