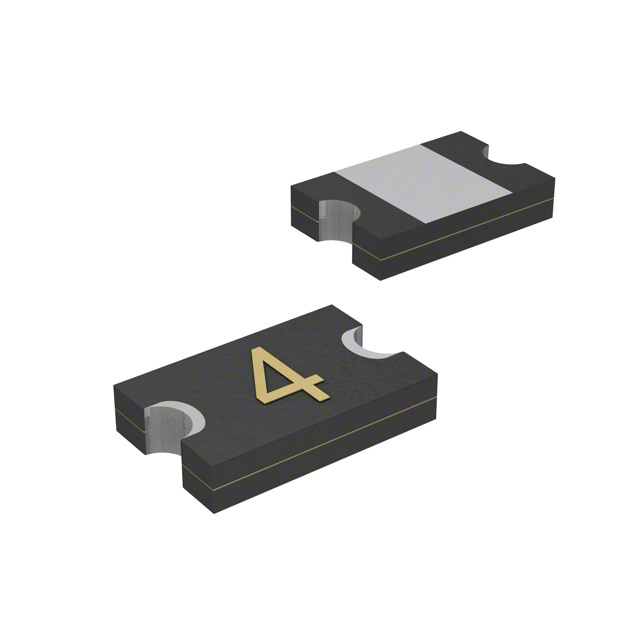

MF-PSMF035X-2
ActiveBourns Inc.
PTC RESET FUSE 6V 350MA 0805
Deep-Dive with AI
Search across all available documentation for this part.
MF-PSMF035X-2
ActiveBourns Inc.
PTC RESET FUSE 6V 350MA 0805
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MF-PSMF035X-2 |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) [Max] | 350 mA |
| Current - Max [Max] | 40 A |
| Current - Trip (It) | 750 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Concave, 0805 (2012 Metric) |
| Resistance - Initial (Ri) (Min) [Min] | 250 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 1.2 Ohms |
| Size / Dimension [x] | 2.15 mm |
| Size / Dimension [x] | 0.085 " |
| Size / Dimension [y] | 0.053 in |
| Size / Dimension [y] | 1.35 mm |
| Thickness (Max) [Max] | 0.033 in |
| Thickness (Max) [Max] | 0.85 mm |
| Time to Trip | 100 ms |
| Type | Polymeric |
| Voltage - Max [Max] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 5 | $ 0.52 | |||
| 10 | $ 0.50 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 5 | $ 0.52 | |||
| 10 | $ 0.50 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.22 | ||
| 6000 | $ 0.22 | |||
| 15000 | $ 0.21 | |||
Description
General part information
MF-PSMF Series
Polymeric PTC Resettable Fuse 6V 350 mA Ih Surface Mount 0805 (2012 Metric), Concave
