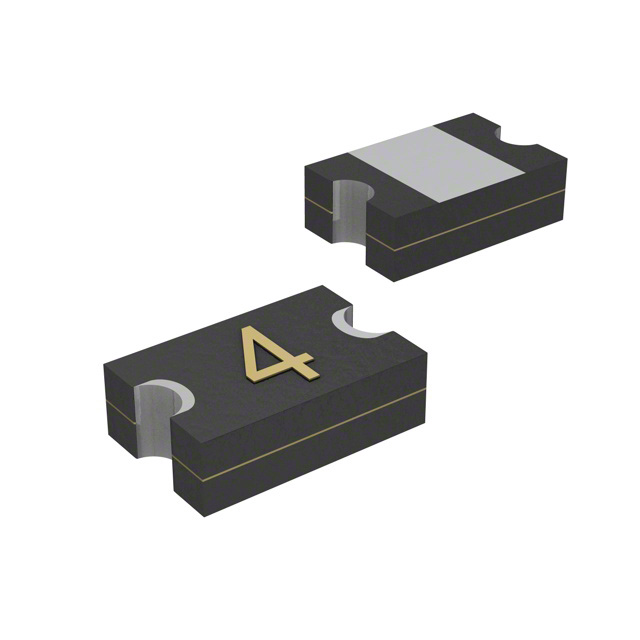

MF-PSMF110X-2

Active

Bourns Inc.

PTC RESET FUSE 6V 1.1A 0805

Search across all available documentation for this part.

Active

Bourns Inc.

PTC RESET FUSE 6V 1.1A 0805

Technical Specifications

Parameters and characteristics for this part

Specification	MF-PSMF110X-2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	1.1 A
Current - Max [Max]	40 A
Current - Trip (It)	2.2 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Concave, 0805 (2012 Metric)
Resistance - Initial (Ri) (Min) [Min]	60 mOhms
Resistance - Post Trip (R1) (Max) [Max]	210 mOhms
Size / Dimension [x]	2.15 mm
Size / Dimension [x]	0.085 "
Size / Dimension [y]	0.053 in
Size / Dimension [y]	1.35 mm
Thickness (Max) [Max]	1.25 mm
Thickness (Max) [Max]	0.049 "
Time to Trip	0.3 s
Type	Polymeric
Voltage - Max [Max]	6 V

Part	Mounting Type	Type	Current - Trip (It)	Time to Trip	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Max [Max]	Approval Agency	Current - Hold (Ih) (Max) [Max]	Package / Case	Voltage - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]
Bourns Inc. MF-PSMF110X-2	Surface Mount	Polymeric	2.2 A	0.3 s	2.15 mm	0.053 in	0.085 "	1.35 mm	85 °C	-40 °C	40 A	cURus TUV	1.1 A	0805 (2012 Metric) Concave	6 V	210 mOhms	1.25 mm	0.049 "	60 mOhms
Bourns Inc. MF-PSMF035X-2	Surface Mount	Polymeric	750 mA	100 ms	2.15 mm	0.053 in	0.085 "	1.35 mm	85 °C	-40 °C	40 A	cURus TUV	350 mA	0805 (2012 Metric) Concave	6 V	1.2 Ohms	0.85 mm	0.033 in	250 mOhms
Bourns Inc. MF-PSMF020X-2	Surface Mount	Polymeric	500 mA	20 ms	2.15 mm	0.053 in	0.085 "	1.35 mm	85 °C	-40 °C	40 A	cURus TUV	200 mA	0805 (2012 Metric) Concave	9 V	3.5 Ohms	0.85 mm	0.033 in	650 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 6V 1.1 A Ih Surface Mount 0805 (2012 Metric), Concave
