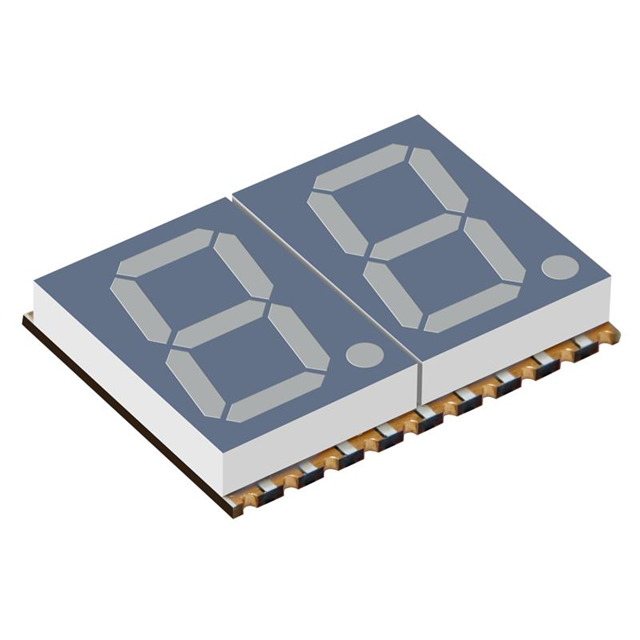

XZFVG14A2
ActiveSunLED
DISPLAY 7SEG 0.56" DBL GRN 20SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFVG14A2
ActiveSunLED
DISPLAY 7SEG 0.56" DBL GRN 20SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFVG14A2 |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 5 mcd |
| Number of Characters | 2 |
| Package / Case | 20-SMD, No Lead |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [y] | 0.988 " |
| Size / Dimension [y] | 25.1 mm |
| Size / Dimension [z] | 3.75 mm |
| Size / Dimension [z] | 0.148 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 200 | $ 4.11 | |
| 600 | $ 3.46 | |||
| 1000 | $ 3.17 | |||
| 2000 | $ 3.04 | |||
Description
General part information
XZFVG14 Series
Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2V 10mA 0.669" H x 0.988" W x 0.148" D (17.00mm x 25.10mm x 3.75mm) 20-SMD, No Lead
