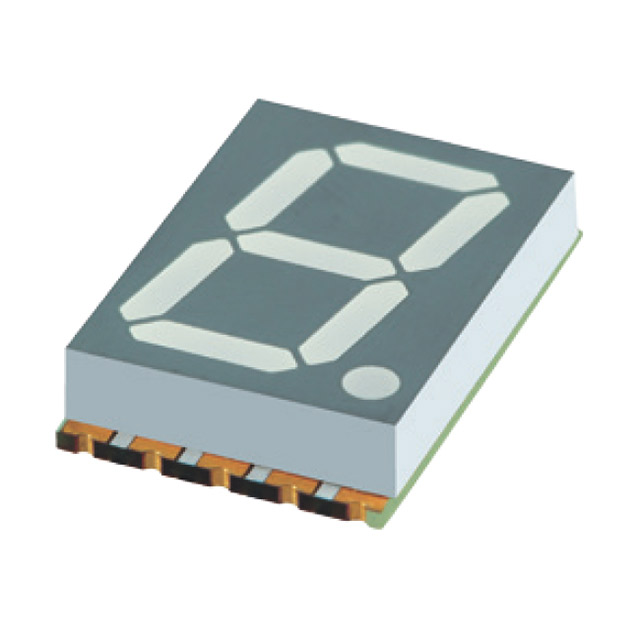

XZFVG14C
ActiveSunLED
DISPLAY 7SEG 0.56" SGL GRN 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFVG14C
ActiveSunLED
DISPLAY 7SEG 0.56" SGL GRN 10SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFVG14C |
|---|---|
| Color | Green |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 5 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 0.488 in |
| Size / Dimension [y] | 12.4 mm |
| Size / Dimension [z] | 0.669 in |
| Size / Dimension [z] | 17 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 400 | $ 1.85 | |
| 800 | $ 1.51 | |||
| 1200 | $ 1.43 | |||
| 2000 | $ 1.37 | |||
Description
General part information
XZFVG14 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2V 10mA 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) 10-SMD, No Lead
