Technical Specifications
Parameters and characteristics for this part
| Specification | EV28-3.0-02-5M0 |
|---|---|
| Current Rating (Max) [Max] | 3 A |
| DC Resistance (DCR) (Max) | 79 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 35.7 mm |
| Height (Max) [Max] | 1.406 in |
| Inductance @ Frequency | 5 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 29.2 mm |
| Size / Dimension [x] | 1.15 " |
| Size / Dimension [y] | 0.827 in |
| Size / Dimension [y] | 21 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.20 | |
| 10 | $ 3.52 | |||
| 25 | $ 3.21 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.52 | |||
| 250 | $ 2.45 | |||
| 500 | $ 2.37 | |||
| 1000 | $ 2.23 | |||
Description
General part information

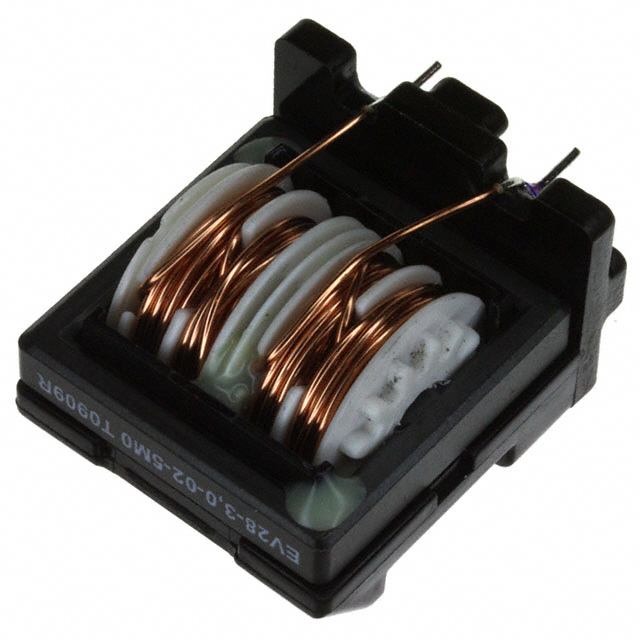

Schaffner EH/EV-Series Series
250 VDC, 3 A, PCB Terminal, PD2 Pollution Degree, IP00, Vertical, UL 94V-0, Board Mount, Schaffner EH/EV-Series, EMC Chokes
