CMC 18MH 800MA 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 18MH 800MA 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EV24-0.8-02-18M

Current Rating (Max) [Max]	800 mA
DC Resistance (DCR) (Max)	438 mOhm
Filter Type	Power Line
Height (Max) [Max]	30.1 mm
Height (Max) [Max]	1.185 in
Inductance @ Frequency	18 mH, 10 kHz
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	24.6 mm
Size / Dimension [x]	0.969 "
Size / Dimension [y]	0.685 in
Size / Dimension [y]	17.4 mm
Voltage Rating - AC	250 V

Part	Inductance @ Frequency	Filter Type	Operating Temperature [custom]	Voltage Rating - AC	Number of Lines	Package / Case	Package / Case	DC Resistance (DCR) (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max)	Height (Max)	Current Rating (Max) [Max]	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Height (Max) [Max]
TE Connectivity Raychem Cable Protection EH24-1.0-02-10M	10 mH	Power Line	-25 °C 100 °C	250 V	2	Horizontal	4 Lead	244 mOhm	24 mm	0.945 in	24 mm	0.945 in	0.827 in	21 mm	1 A	Through Hole
TE Connectivity Raychem Cable Protection EH35-2.0-02-20M	20 mH	Power Line	-25 °C 100 °C	250 V	2	Horizontal	4 Lead	150 mOhm	36 mm	1.417 in	36 mm	1.417 in			2 A	Through Hole	1.13 in	28.7 mm
TE Connectivity Raychem Cable Protection EV24-0.8-02-18M	10 kHz 18 mH	Power Line	-25 °C 100 °C	250 V	2	Vertical	4 Lead	438 mOhm	24.6 mm	0.685 in	17.4 mm	0.969 "			800 mA	Through Hole	1.185 in	30.1 mm
TE Connectivity Raychem Cable Protection EV28-3.0-02-5M0	5 mH	Power Line	-25 °C 100 °C	250 V	2	Vertical	4 Lead	79 mOhm	29.2 mm	0.827 in	21 mm	1.15 "			3 A	Through Hole		1.406 in	35.7 mm
TE Connectivity Raychem Cable Protection EH24-1.5-02-4M5	4.5 mH 400 Hz	Power Line	-25 °C 100 °C	250 V	2	Horizontal	4 Lead	116 mOhm	24 mm	0.945 in	24 mm	0.945 in	0.827 in	21 mm	1.5 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

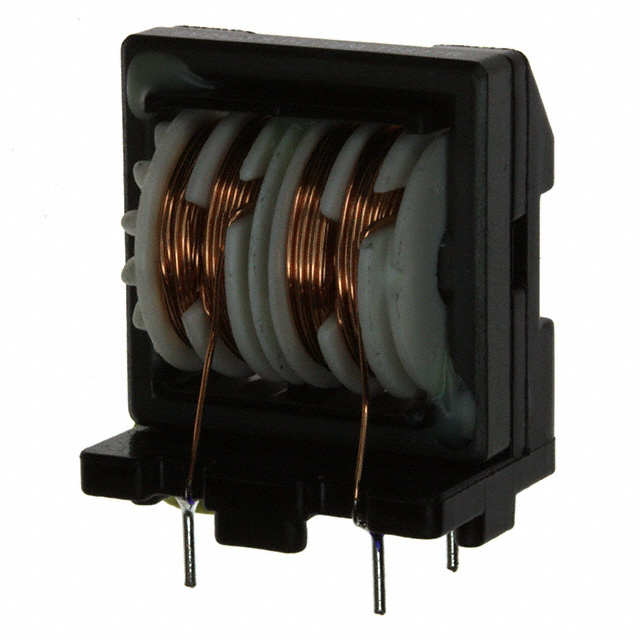

250 VDC, .8 A, PCB Terminal, PD2 Pollution Degree, IP00, Vertical, UL 94V-0, Board Mount, Schaffner EH/EV-Series, EMC Chokes
