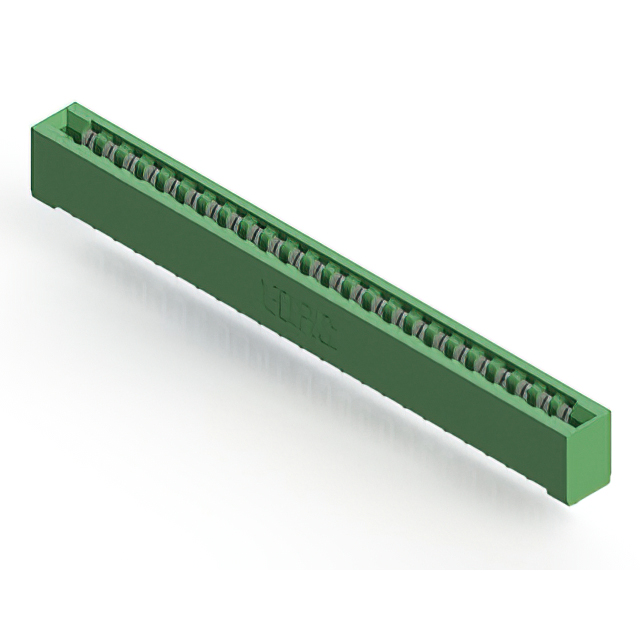

807-024-401-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, 24 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, LOCKING, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-024-401-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, 24 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, SOLDER TERMINAL, LOCKING, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-024-401-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	48
Number of Positions/Bay/Row [custom]	24
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

807-024 Series

...

Part	Termination Rows	Gender	Material - Insulation	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Termination	Color	Contact Material	Read Out	Number of Rows	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Flange Feature	Contact Type	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 807-024-459-212	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Green	Copper Alloy	Single	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Semi Bellows	Tin	Through Hole Right Angle
EDAC Inc. 807-024-541-107	1	Female	Diallyl Phthalate (DAP)	48	125 °C	-40 °C	Non Specified - Dual Edge	Wire Wrap	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Flush Mount M3 Threaded Insert Top Opening			Semi Bellows	Gold	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 807-024-420-212	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Semi Bellows	Tin	Through Hole
EDAC Inc. 807-024-531-104	1	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Single Edge	Solder	Green	Copper Alloy	Single	1	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Flush Mount Top Opening Unthreaded			Semi Bellows	Gold	Through Hole	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 807-024-401-101	1	Female	Diallyl Phthalate (DAP)	48	125 °C	-40 °C	Non Specified - Dual Edge	Solder Eyelet(s)	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24				Semi Bellows	Tin	Through Hole
EDAC Inc. 807-024-520-212	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Semi Bellows	Gold	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 807-024-545-108	1	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Single Edge	Wire Wrap	Green	Copper Alloy	Single	1	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24	4-40 Flush Mount Threaded Insert Top Opening			Semi Bellows	Gold	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 807-024-441-112	1	Female	Diallyl Phthalate (DAP)	48	125 °C	-40 °C	Non Specified - Dual Edge	Wire Wrap	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Semi Bellows	Tin	Through Hole
EDAC Inc. 807-024-420-207	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Flush Mount M3 Threaded Insert Top Opening			Semi Bellows	Tin	Through Hole
EDAC Inc. 807-024-400-202	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder Eyelet(s)	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Flush Mount Top Opening Unthreaded			Semi Bellows	Tin	Through Hole			3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 150.34
Newark	Each	1	$ 201.95
		100	$ 132.00
		250	$ 109.09
		500	$ 100.36
		1000	$ 81.50

Description

General part information

807-024 Series

48 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
