807-024-420-212

Active

EDAC Inc.

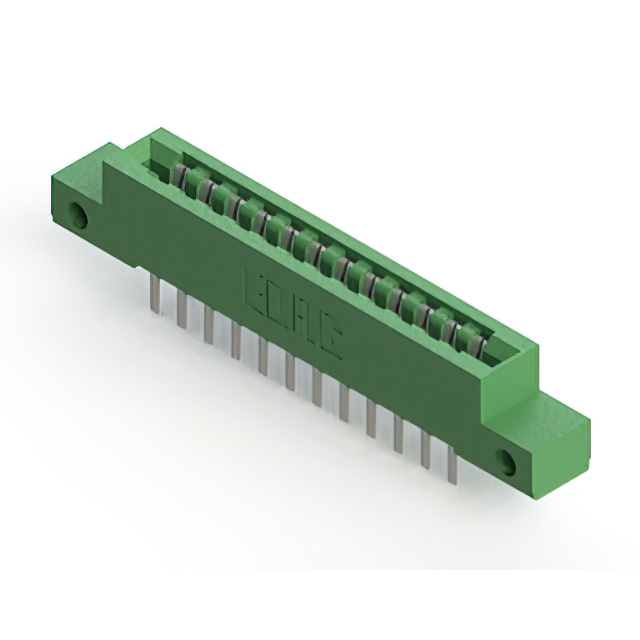

CARD EDGE CONNECTOR, 24 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-024-420-212

Active

EDAC Inc.

CARD EDGE CONNECTOR, 24 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-024-420-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	24
Number of Positions/Bay/Row [custom]	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

807-024 Series

...

Part	Termination Rows	Gender	Material - Insulation	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Termination	Color	Contact Material	Read Out	Number of Rows	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Flange Feature	Contact Type	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 807-024-459-212	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Green	Copper Alloy	Single	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Semi Bellows	Tin	Through Hole Right Angle
EDAC Inc. 807-024-541-107	1	Female	Diallyl Phthalate (DAP)	48	125 °C	-40 °C	Non Specified - Dual Edge	Wire Wrap	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Flush Mount M3 Threaded Insert Top Opening			Semi Bellows	Gold	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 807-024-420-212	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Semi Bellows	Tin	Through Hole
EDAC Inc. 807-024-531-104	1	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Single Edge	Solder	Green	Copper Alloy	Single	1	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Flush Mount Top Opening Unthreaded			Semi Bellows	Gold	Through Hole	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 807-024-401-101	1	Female	Diallyl Phthalate (DAP)	48	125 °C	-40 °C	Non Specified - Dual Edge	Solder Eyelet(s)	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24				Semi Bellows	Tin	Through Hole
EDAC Inc. 807-024-520-212	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Semi Bellows	Gold	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 807-024-545-108	1	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Single Edge	Wire Wrap	Green	Copper Alloy	Single	1	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24	4-40 Flush Mount Threaded Insert Top Opening			Semi Bellows	Gold	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 807-024-441-112	1	Female	Diallyl Phthalate (DAP)	48	125 °C	-40 °C	Non Specified - Dual Edge	Wire Wrap	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Semi Bellows	Tin	Through Hole
EDAC Inc. 807-024-420-207	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Flush Mount M3 Threaded Insert Top Opening			Semi Bellows	Tin	Through Hole
EDAC Inc. 807-024-400-202	2	Female	Diallyl Phthalate (DAP)	24	125 °C	-40 °C	Non Specified - Dual Edge	Solder Eyelet(s)	Green	Copper Alloy	Dual	2	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	12	Flush Mount Top Opening Unthreaded			Semi Bellows	Tin	Through Hole			3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 53.40
Newark	Each	1	$ 64.09
		100	$ 39.14
		250	$ 34.64
		500	$ 32.45
		1000	$ 26.75

Description

General part information

807-024 Series

24 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
