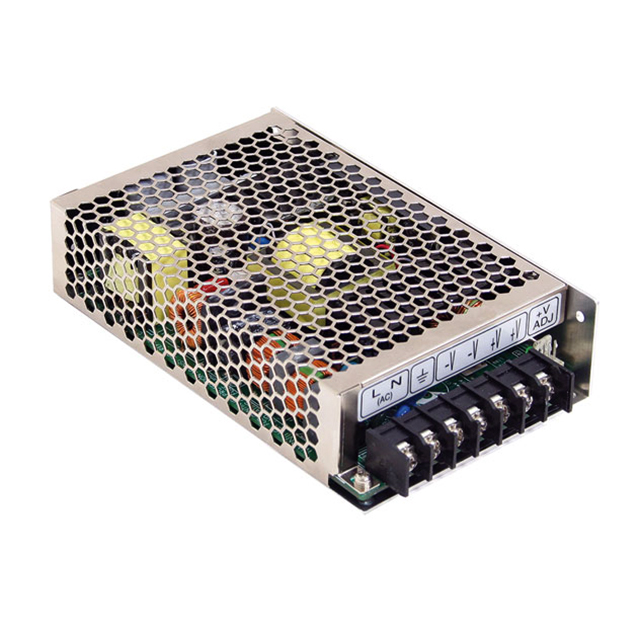

Specification	HRP-150-15

Applications	ITE (Commercial)
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	10 A
Efficiency	88 %
Features	Adjustable Output, Universal Input, Remote Sense, PFC
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	150 W
Size / Dimension Height	1.5 in
Size / Dimension Length	6.26 in
Size / Dimension Width	3.82 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	3 kV
Voltage - Output 1	15 V

HRP-150 Series

Part	Minimum Load Required	Applications	Efficiency	Type	Current - Output 1	Number of Outputs	Features	Approval Agency	Voltage - Isolation	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (DC) Maximum	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Voltage - Output 1	Mounting Type	Standard Number
MEAN WELL USA Inc. HRP-150-48	No	ITE (Commercial)	89 %	Enclosed	3.3 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	158 W	48 V	Chassis Mount
MEAN WELL USA Inc. HRP-150-3.3	No	ITE (Commercial)	78.5 %	Enclosed	30 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	99 W	3.3 V	Chassis Mount
MEAN WELL USA Inc. HRP-150N-12	No	ITE (Commercial)	88 %	Enclosed	13 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	156 W	12 V	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-5	No	ITE (Commercial)	85 %	Enclosed	26 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	130 W	5 V	Chassis Mount
MEAN WELL USA Inc. HRP-150N-36	No	ITE (Commercial)	89 %	Enclosed	4.3 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	155 W	36 V	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-12	No	ITE (Commercial)	88 %	Enclosed	13 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	156 W	12 V	Chassis Mount
MEAN WELL USA Inc. HRP-150N-48	No	ITE (Commercial)	89 %	Enclosed	3.3 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	158 W	48 V	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-24	No	ITE (Commercial)	88 %	Enclosed	6.5 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	156 W	24 V	Chassis Mount
MEAN WELL USA Inc. HRP-150N-24	No	ITE (Commercial)	88 %	Enclosed	6.5 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	156 W	24 V	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-15	No	ITE (Commercial)	88 %	Enclosed	10 A	1	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3 kV	85 VAC	120 V	264 V	370 V	3.82 in	1.5 in	6.26 in	70 °C	-40 °C	150 W	15 V	Chassis Mount
