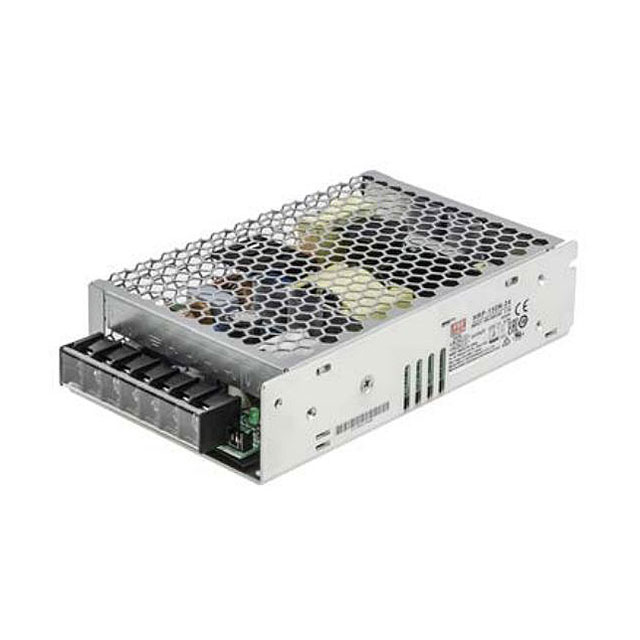

HRP-150N-36

Obsolete

MEAN WELL USA Inc.

AC/DC CONVERTER 36V 155W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HRP-150N-36

Obsolete

MEAN WELL USA Inc.

AC/DC CONVERTER 36V 155W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRP-150N-36

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, EAC, CE, CB
Current - Output 1	4.3 A
Efficiency	89 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	155 W
Size / Dimension [x]	6.26 in
Size / Dimension [x]	159 mm
Size / Dimension [y]	97 mm
Size / Dimension [y]	3.82 in
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

HRP-150 Series

Part	Applications	Type	Power (Watts)	Current - Output 1	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Approval Agency	Voltage - Isolation	Efficiency	Mounting Type	Standard Number
MEAN WELL USA Inc. HRP-150-48	ITE (Commercial)	Enclosed	158 W	3.3 A	48 V	85 VAC 120 VDC	264 VAC 370 VDC	1	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	89 %	Chassis Mount
MEAN WELL USA Inc. HRP-150-3.3	ITE (Commercial)	Enclosed	99 W	30 A	3.3 V	85 VAC 120 VDC	264 VAC 370 VDC	1	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	78.5 %	Chassis Mount
MEAN WELL USA Inc. HRP-150-5	ITE (Commercial)	Enclosed	130 W	26 A	5 V	85 VAC 120 VDC	264 VAC 370 VDC	1	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	85 %	Chassis Mount
MEAN WELL USA Inc. HRP-150N-36	ITE (Commercial)	Enclosed	155 W	4.3 A	36 V	85 VAC 120 VDC	264 VAC 370 VDC	1	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3000 V	89 %	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150N-48	ITE (Commercial)	Enclosed	158 W	3.3 A	48 V	85 VAC 120 VDC	264 VAC 370 VDC	1	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3000 V	89 %	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-24	ITE (Commercial)	Enclosed	156 W		24 V	85 VAC 120 VDC	264 VAC 370 VDC	1	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	88 %	Chassis Mount
MEAN WELL USA Inc. HRP-150N-24	ITE (Commercial)	Enclosed	156 W		24 V	85 VAC 120 VDC	264 VAC 370 VDC	1	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus EAC TUV	3000 V	88 %	Chassis Mount	62368-1
MEAN WELL USA Inc. HRP-150-15	ITE (Commercial)	Enclosed	150 W	10 A	15 V	85 VAC 120 VDC	264 VAC 370 VDC	1	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output PFC Remote Sense Universal Input	CB CE cURus TUV	3000 V	88 %	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 74.00

Description

General part information

HRP-150 Series

Enclosed AC DC Converters 1 Output 36V 85 ~ 264 VAC, 120 ~ 370 VDC Input
