1-2141520-1

Active

TE Connectivity Raychem Cable Protection

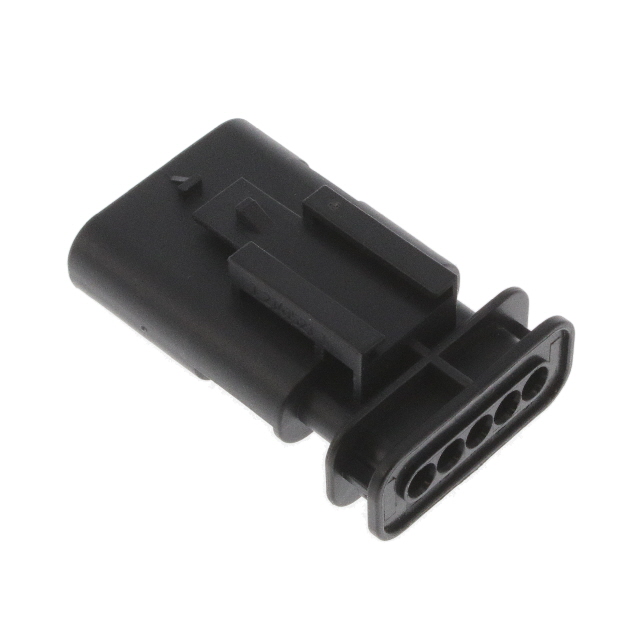

AUTOMOTIVE CONNECTOR HOUSING, MCON SERIES, PLUG, 5 POSITIONS, AMP MCON SERIES PIN CONTACTS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE CONNECTOR HOUSING, MCON SERIES, PLUG, 5 POSITIONS, AMP MCON SERIES PIN CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	1-2141520-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Locking Ramp
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	4 mm
Pitch [x]	0.157 in

Part	Contact Termination	Contact Finish	Pin or Socket	Type	Wire Gauge [Max]	Wire Gauge [Min]	Connector Type	Insulation Material	Contact Type	Color	Pitch [x]	Pitch [x]	Note	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Number of Rows	Fastening Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
TE Connectivity Raychem Cable Protection 7-1452659-3	Crimp	Tin	Socket	Stamped	17 AWG	15 AWG
TE Connectivity Raychem Cable Protection 1-2203773-3
TE Connectivity Raychem Cable Protection 7-1452671-1	Crimp	Tin	Socket	Stamped	18 AWG	16 AWG
TE Connectivity Raychem Cable Protection 4-2098541-1	Crimp						Receptacle	Polyamide (PA66) Nylon 6/6	Female Socket	Brown	4 mm	0.157 in	Contacts Not Included	-40 °C	105 ░C	Free Hanging (In-Line)	IP67 Sealed	1	Latch Lock
TE Connectivity Raychem Cable Protection 1452668-2	Crimp	Gold	Socket		20 AWG	17.5 AWG														31.5 µin	0.8 µm
TE Connectivity Raychem Cable Protection 1-2141520-1	Crimp						Plug	Polybutylene Terephthalate (PBT) Glass Filled	Tab	Black	4 mm	0.157 in	Contacts Not Included	-40 °C	125 °C	Free Hanging (In-Line)	Sealed	1	Locking Ramp
TE Connectivity Raychem Cable Protection 2138873-4
TE Connectivity Raychem Cable Protection 7-1452659-2
TE Connectivity Raychem Cable Protection 1-2236952-5	Crimp						Plug	Polybutylene Terephthalate (PBT) Glass Filled	Tab	Black	4 mm	0.157 in				Free Hanging (In-Line)	Terminal Position Lock (TPA)	1	Locking Ramp			2
TE Connectivity Raychem Cable Protection 7-1452671-2	Crimp	Gold	Socket	Stamped	18 AWG	16 AWG														31.5 µin	0.8 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4 mm [.15 in] Centerline, Sealable, Black, Wire & Cable, Power, MCON 1.2mm
