7-1452659-3

Active

MCON 1.2 LL REC SRC AG

Active

MCON 1.2 LL REC SRC AG

Description

General part information

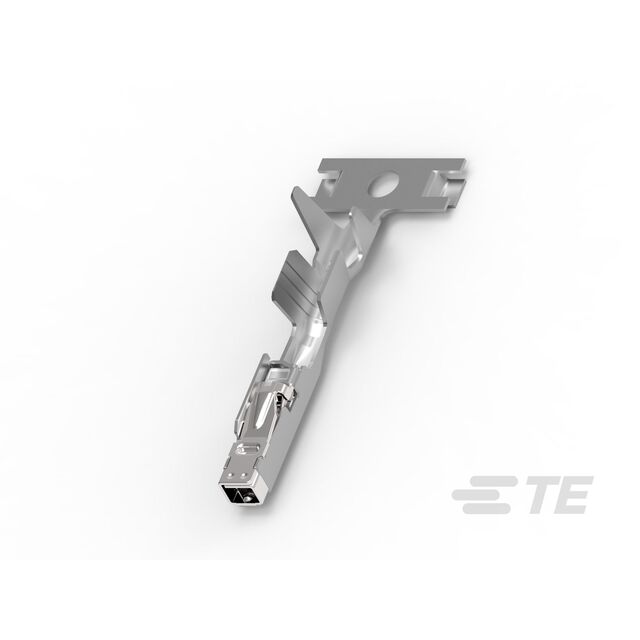

Receptacle Terminal, 17 – 15 AWG, 1 – 1.5 mm² Wire, 1.2 mm [.047 in] Tab Width, Silver (Ag), .6 mm [.024 in] Tab Thickness, Unsealed, MCON 1.2mm

Parameters and characteristics for this part

...

Part	Pin or Socket	Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Contact Termination	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Contact Type	Features	Fastening Type	Insulation Material	Pitch	Color	Number of Rows	Number of Positions	Contact Finish Thickness	Row Spacing
TE Connectivity AMP Connectors 7-1452659-3	Socket	Stamped	15 AWG	17 AWG	Tin	Crimp
TE Connectivity AMP Connectors 2-2378602-1
TE Connectivity AMP Connectors 1-2301521-5
TE Connectivity AMP Connectors 2-1670918-1						Crimp	Free Hanging (In-Line)	130 °C	-40 °C	Housing for Female Insert	Female Socket	Sealed	Slide-On	Glass Filled Nylon Polyamide (PA)	0.157 in	Black	1	4
TE Connectivity AMP Connectors 1452503-1	Socket		15 AWG	17 AWG	Tin	Crimp													39.4 Ąin
TE Connectivity AMP Connectors 2359943-1						Crimp	Free Hanging (In-Line)	130 °C	-40 °C	Receptacle	Female Socket	Sealed	Push-Pull	Glass Filled Nylon 6/6 Polyamide (PA66)	0.098 in	Black	4	96		0.118 in
TE Connectivity AMP Connectors 1-1703498-3						Crimp	Free Hanging (In-Line)	125 °C	-40 °C	Plug	Tab	Sealed	Latch Lock	Glass Filled Polybutylene Terephthalate (PBT)	0.157 in	Black	1	2
TE Connectivity AMP Connectors 1-2301519-5						Crimp	Free Hanging (In-Line)	150 °C	-40 °C	Plug	Tab	Terminal Position Lock (TPA)	Push-Pull	Glass Filled Polybutylene Terephthalate (PBT)	0.157 in	Black	2	4		0.157 in
TE Connectivity AMP Connectors 1-2355514-5
TE Connectivity AMP Connectors 2098557-1						Crimp	Free Hanging (In-Line)			Receptacle	Female Socket	Sealed	Latch Lock	Nylon 6/6 Polyamide (PA66)	0.157 in		1	2
